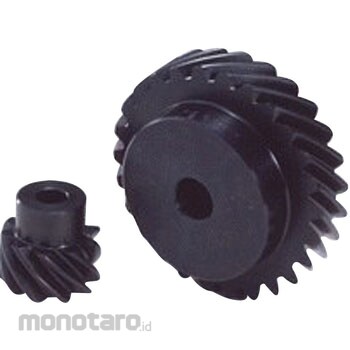

KHK Carbon Steel Screw Gear (SN1 Type) SN1-26RJ14 1pc

#Nomor SKU S033998718

Spesifikasi Produk

Model Number	SN1-26RJ14
Unit	1pc
Gear accuracy	JIS N9 class
Number of Teeth	26
Torsion Angle (°)	45
Twist direction	R
Shape	S1K
Hole Diameter (mm)	14
Boss Diameter (mm)	30
Standard Circle Diameter (mm)	36.77
Tip Circle Diameter (mm)	38.77
Face Width (mm)	10
Boss Chief (mm)	10
Gear Reference Cross Section	Normal Angle
Full Length (mm)	20
Screw Size	M4
Pressure Angle (°)	20
Gear Cutting Reference Cross Section	Hole (H7)
Allowable Torque (N m)	surface strength 1.42
Backlash (mm)	0.08 to 0.18
Material	S45C
Surface Treatment	Black dye
Dimensions a (mm)	14
Dimension Bs (mm)	30
Dimensions c (mm)	36.77
Dimensions ds (mm)	38.77
Hole Diameter	14
Module	1
Shaft Hole Diameter (mm)	14
Spiral Angle	Right direction
Tooth Type	Normal teeth
Tooth Width (mm)	10
M Code	17729075
Berat (Kg)	0.1
Tanggal Produk Terdaftar	08 October 2022
Terakhir Diperbaharui	21 November 2025
