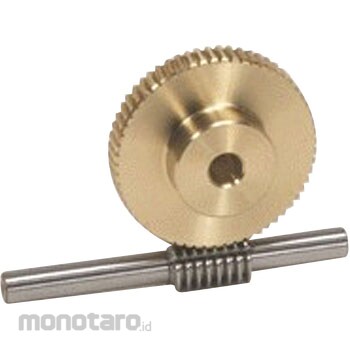

KHK AG Worm Wheel J Series AG2-60R1J20 1pc

#Nomor SKU S033989303

Spesifikasi Produk

Model Number	AG2-60R1J20
Unit	1pc
Gear accuracy	KHK W 002 Class 2
Number of Teeth	60
Torsion Angle	3°41'
Twist direction	R
Shape	H5K
Hole Diameter (mm)	20
Boss Diameter (mm)	55
Standard Circle Diameter (mm)	120
Tip Circle Diameter (mm)	126
Face Width (mm)	18
Boss Chief (mm)	15
Gear Reference Cross Section	Perpendicular to the axis
Throat Diameter (mm)	124
Tooth Profile	Straight Teeth
Normal Pressure Angle	20°
Material	CAC702 ; (AlBC2) ; (Boss part FC200)
Tooth Surface Finish	Cutting
Gear Reference Surface	Hole (H7)
Reduction Ratio	60
Perpendicular Module	2
Accuracy class	KHK W 002 Grade 2
Dimensions a (mm)	20
Dimension Bs (mm)	55
Dimensions c (mm)	120
Dimensions ds (mm)	124
Dimensions d' (mm)	126
Dimension H (mm)	11
Dimensions I (mm)	100
Dimensions j (mm)	75.5
Helix Angle	3 ° 41 ′ (Torsion direction: R)
Hole Diameter	20
Modules	2
Number of Opponents	1
Shaft Hole Diameter (mm)	20
Spiral Angle	Right direction
Tooth Type	Normal teeth
Tooth Width (mm)	18
M Code	17691738
Berat (Kg)	1.4
Tanggal Produk Terdaftar	08 October 2022
Terakhir Diperbaharui	21 November 2025
