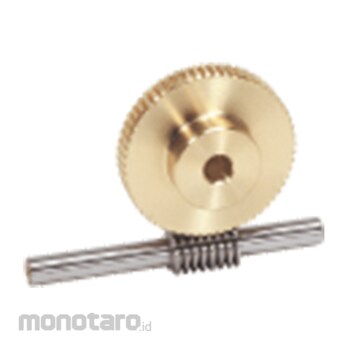

KHK AG Worm Wheel AG0.8-40R1 1pc
Rp669.900
Persediaan
Spesifikasi Produk
| Model Number | AG0.8-40R1 |
|---|---|
| Unit | 1pc |
| Gear accuracy | KHK W 002 Class 2 |
| Number of Teeth | 40 |
| Torsion Angle | 3°49' |
| Twist direction | R |
| Shape | HA |
| Hole Diameter (mm) | 6 |
| Boss Diameter (mm) | 20 |
| Standard Circle Diameter (mm) | 32 |
| Tip Circle Diameter (mm) | 33.6 |
| Face Width (mm) | 8 |
| Boss Chief (mm) | 8 |
| Gear Reference Cross Section | Perpendicular to the axis |
| Full Length (mm) | 16 |
| Tooth Finish | Cutting |
| Tooth Profile | Straight Teeth |
| Normal Pressure Angle | 20° |
| Material | CAC702 ; (AlBC2) |
| Gear Reference Surface | Hole (H7) |
| Reduction Ratio | 40 |
| Perpendicular Module | 0.8 |
| Backlash (mm) | 0.06～0.17 |
| Helix Angle | 3°49′ |

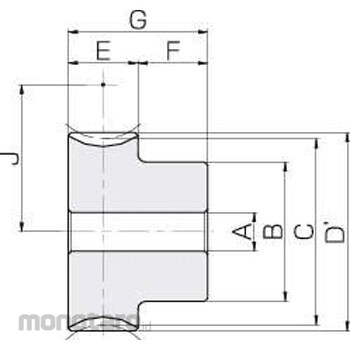

| Hole Diameter A (Φmm) | 6(H7) |
| Hub Diameter (Φmm) | 20 |
| Hub Length F (mm) | 8 |
| Modules | 0.8 |
| Number of Opponents | 1 |
| Overall Length G (mm) | 16 |
| Spiral Angle | Right direction |
| Tooth Width E (mm) | 8 |
| Web Thickness H (mm) | - |
| M Code | 38014347 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 08 October 2022 |
| Terakhir Diperbaharui | 21 November 2025 |
