NKC-KS-4P (BSBM)/4P-A
For middle & low pressure,
Twin valve type

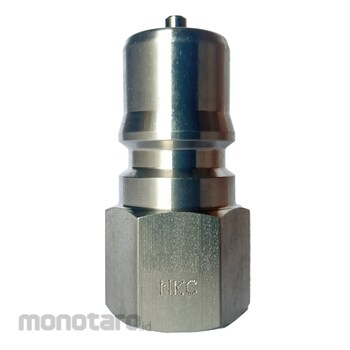

Yoshida KS Series Coupler Plug (Female Thread) KS-4P (BSBM) 1/2inch 1pc
Rp359.900
Persediaan
Spesifikasi Produk
| Model Number | KS-4P |
|---|---|
| Unit | 1pc |
| Thread Size T2 (Rc) (inch) | 1/2 |
| Overall Length (mm) | 44 |
| Size Hp Hex (mm) | 29 |
| Assembling Length (mm) | 89 |
| Minimum Sectional Area of Passage (cm²) | 1 |
| Material | Brass C3604 (BsBM) |
| Connection Method | Only female thread (both socket and plug) |
| Working Pressure (MPa) | 5.0 |
| Maximum Working Pressure (MPa) | 7.5 |
| O-Ring, Valve Material | Fluororubber (FKM) |
| Working Temperature Range (°C) | -20 to +180 |
| Applicable Fluid | Gasoline, Heavy oil, Kerosene, Water, Air |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 20 September 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
- Image on this page only as Representative Image. It will follow the description and model number.- Please confirm product details on Attribute Information then place an order.
Feature
- Both the socket and plug of this twin-valve coupling incorporate a shutoff valve. The moment the socket and plug are disconnected, the socket and plug sides of the coupling are completely sealed.- Because the coupling has been made with great precision by fully utilizng the newest machining technoIogy, a superior sealing performance is ensured even as the socket and plug are connected or disconnected.
- The passage opens the moment the socket or plug is connected and closes the moment the socket or plug is disconnected. This virtually eliminates fluid loss and air entry.
- Numerous models are available varying in nominal diameter, body material, O ring material and valve packing material. Select the model that is best suited to your application and operating conditions.
Use
Water piping, Sea-water piping, Oxygen piping, Acetylene piping, Air piping, Chemicals, Chemical plant, High pressure gas piping
