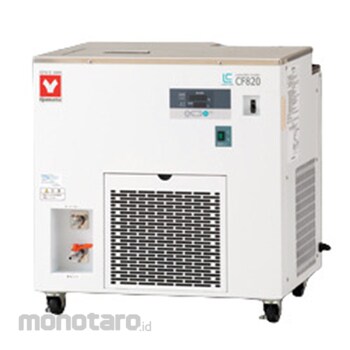

YAMATO SCIENTIFIC Cooling Water Circulator CF820 1unit

Name: YAMATO SCIENTIFIC Cooling Water Circulator CF820 1unit
Brand: YAMATO SCIENTIFIC
SKU: S033492216
Price: 139999900 IDR
Availability: InStock

#Nomor SKU S033492216

YAMATO SCIENTIFIC

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	CF820
Unit	1unit
Item Code	221552
Circulation Type	Closed System Circulation By Pump
Operating Ambient Temperature (°C)	5 to 35
Operating Temperature Range (°C)	-20 to R.T.
Cooling Capacity	Approx. 940W (810kcal/h) at Liquid Temperature 10 deg.C, Approx. 820W (706kcal/h) at Liquid Temperature 0 deg.C, Approx. 710W (612kcal/h) at Liquid Temperature -10 deg.C
Temperature Control	Refrigerator ON/OFF operation
Temperature Sensor	T thermocouple
Temperature Setting / Display	Digital setting/display
Refrigerator	Air cooling sealed rotary type 600W
Refrigerant	R404A
Circulation Pump (W)	Magnet pump 127
Maximum Flow Rate (L/minute)	Circulation capacity (50/60Hz) 9.2/10.8 (30L/min.)
Max. Lift (m)	Circulation Capacity (50/60Hz), 9.6/13.3 (10.3/14.3m)
Material Cooling Coil	SUS316
External Circulation Nozzle	10.5mm O.D. (SUS) x 2 lines
Safety device	Over current electrical leakage breaker, Refrigerator over load relay, Pump thermal protector, Delay timer for protecting refrigerator, H bypass for protecting pump
Other Functions	Drain valve, Overflow, Dust prevention filter, Key lock, Calibration offset function
Water Bath Material	Stainless steel
Water Bath Capacity (L)	6.5 (liquid volume 6L) 250(W)x180(D)x140(H)mm
Accessories	Lid, Drain hose, Circulation hose 1.5m x 4pcs, Overflow hose, Wire clamp x 4pcs
Berat (Kg)	60.0
Tanggal Produk Terdaftar	20 September 2022
Terakhir Diperbaharui	22 July 2025
