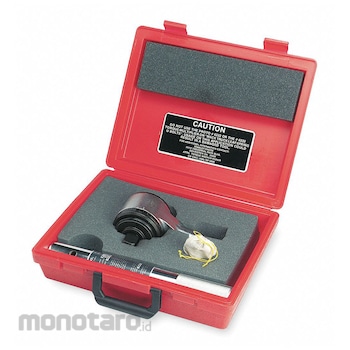

PROTO Torque Multiplier J6222 1/2(F)x1(M)inch 1unit

Name: PROTO Torque Multiplier J6222 1/2(F)x1(M)inch 1unit
Brand: PROTO
SKU: S033367712
Price: 62999900 IDR
Availability: InStock

#Nomor SKU S033367712

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	J6222
Unit	1unit
Torque Measurement Type	Foot-Pound
Accuracy (%)	±5
Maximum Rated Input (ft/lbs)	162
Maximum Rated Output (ft/lbs)	2200
Input Drive (inch)	1/2
Output Drive (inch)	1
Torque Ratio	1 : 13.6
Antibacklash Device	3 Position Self Contained
Gear Ratio	1 : 13.6
Gear System	2 Stage Planetary
Angle of Turn Protractor (°)	5 Increments
Handle Length (inch)	14 1/8
Material	Bi Material
Finish	Chrome
Head Depth (inch)	5 3/4
Measurement Type	SAE
Overall Height (inch)	5 3/4
Overall Width (inch)	4 1/16
Color	Black
Overall Length (inch)	19 19/32
Overall Length (mm)	497.68
Berat (Kg)	9.2
Tanggal Produk Terdaftar	12 September 2022
Terakhir Diperbaharui	22 January 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Handheld torque multipliers are for use with hand or nonimpact power tools and are used in combination with a torque wrench to increase torque. They have internal gears to multiply the amount of torque that can be applied to a fastener without additional manual force being applied. Multipliers are held between the socket end of the torque wrench and the fastener that needs tightening.

Peringatan

Catatan Penting: Tanpa Garansi
Produk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.

Feature

Maximum rated input: 200 ft-lbs (271 Nm).Maximum rated output: 1200 ft-lbs (1626 Nm).Standard torque accuracy is +/- 5% of reading.Reaction system: tubular reaction bar.Gear system: single stage planetary.Angle of turn protractor: 5° increments.
