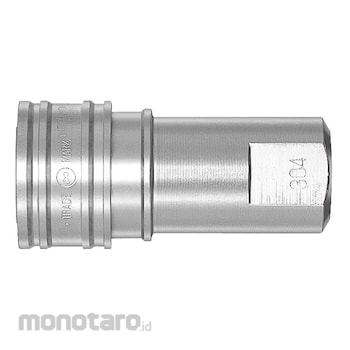

NITTO KOHKI Coupling Semicon Cupla SP Type Socket (Kopler) 1S-304-E 1pc

Name: NITTO KOHKI Coupling Semicon Cupla SP Type Socket (Kopler) 1S-304-E 1pc
Brand: NITTO KOHKI
SKU: S033156767
Price: 1399900 IDR
Availability: InStock

#Nomor SKU S033156767

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	1S-304-E
Unit	1pc
Body Material	Electropolished Stainless Steel SUS304
Seal Material	Ethylene-propylene Rubber
Container Capacity (L)	for 10-20
Dimension L (mm)	48
Dimension D (mm)	phi 24
Dimensions H (WAF) (mm)	14
Dimensions t (mm)	Rc 1/8
Minimum Cross Section Area (mm²)	13
Working Pressure (MPa)	0.2
Working Temperature Range (°C)	0-50
Maximum Tightening Torque (N m)	9
Berat (Kg)	0.1
Tanggal Produk Terdaftar	28 August 2022
Terakhir Diperbaharui	26 January 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

General purpose type with stainless steel body and rubber seal. Electro-polished body for enhanced corrosion resistance.
- Body and valve springs are stainless steel (SUS304). Body is electro-polished for enhanced corrosion resistance.
- Seal materials can be selected to suit your fluid and application, to flexibly comply with your semiconductor production process requirements.
- All components are cleaned,assembled,inspected,and then packed in a clean room.
- Grease free.No grease is applied to the seal material.
- Each plug comes with a dust cap.
- Stainless steel SUS316 body and valve springs are available as made-to-order products.
