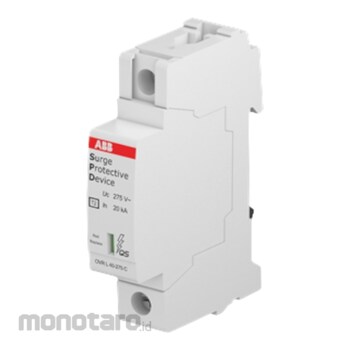

ABB Surge Protective Device OVR T2 40-275 P QS 1pc

Name: ABB Surge Protective Device OVR T2 40-275 P QS 1pc
Brand: ABB
SKU: S032545081
Price: 499900 IDR
Availability: InStock

#Nomor SKU S032545081

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	OVR T2 40-275 P QS
Unit	1pc
Number of Poles	1
Product Depth/Length (mm)	58
Product Height (mm)	88
Product Width (mm)	17.8
Options Provided	Residential, commercial building.
Arrester Class	II
Discharge Current (kA)	Nominal 20, Maximum 40, Total 40, Nominal (8/20µs) 20, I (max, 8/20µs) 40
Fuse Size	1 modular spacing
Maximum Continuous Operating Voltage (V)	(L-PE) 275, (L-L) 275, (L-N) 275, (N-PE) -
Nominal AC Voltage of the System (V)	230/400
Number of Conductors	1
Preventive Maintenance Feature	No
Impulse Current (kA)	I (imp, 10/350µs) 2
Power Loss (mW)	8
Number of Protected Poles	1
Mounting Type	DIN rail (top hat rail) 35 mm
Rated Voltage (V）	230 AC
Rated Service Short-Circuit Breaking Capacity (kA)	100
Berat (Kg)	0.1
Tanggal Produk Terdaftar	16 July 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

OVR T2 40-275 P QS Surge Protective Device
Surge protective devices SPD type 2 protect low-voltage consumer systems against surge voltages as they are tested as SPD type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact.
