Compact SSR (G3S, 4 mounted), integrated SSR with an easy-to-use structure that integrates a socket and radiator
Terminals are separated by IN / OUT, so wiring is easy. Dedicated socket with operation indicator LED makes relay replacement easy.
DIN rail mounting, screw mounting shared

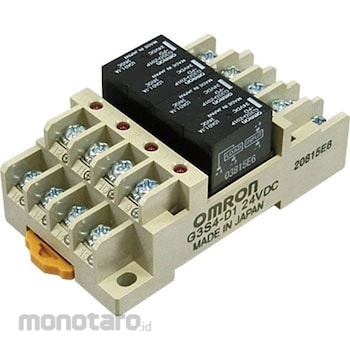

OMRON Terminal SSR G3S4 G3S4-D1 DC24 1pc
Rp939.900
Persediaan
Spesifikasi Produk
| Model Number | G3S4-D1 DC24 |
|---|---|
| Unit | 1pc |
| Voltage Drop When Output Turned On (V) | 1.5 or less |
| Shock Resistance (m/s2) | 1000 |
| Suitable Load of Output | 0.6A, DC 3 to 26V |
| Operating Time (ms) | 1 or less |
| Rated Current (mA) | 13.2±20% |
| Return Voltage | DC1V or more |
| Operating Voltage (V) | DC 19.2 or less |
| Equipped with / without Zero Cross Function | None |
| Ambient Relative Humidity (RH) | 45 to 85 |
| Rated Voltage (V) | DC24 |
| Input Impedance (ohm) | 2.3k±20% |
| Insulation Resistance (MΩ) | 100 or more (with DC 500V mega) |
| Storage Temperature Range (°C) | -30 to +100 (with no icing or condensation) |
| Leakage Current (mA) | 0.1 or less (at DC 26V) |
| Operating Voltage Range (V) | DC19.2 to 28.8 |
| Type | Terminal relay |
| Coil Rated Voltage (V) | DC24 |
| Operating Ambient Temperature (°C) | -30 to +80, but no freezing)) |
| Contact Configuration | 1ax4 |
| M Code | 39066745 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 29 June 2022 |
| Terakhir Diperbaharui | 20 October 2025 |
