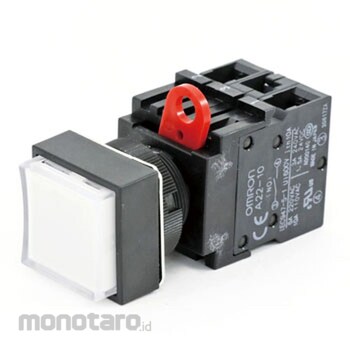

OMRON Pushbutton Switch (Square) (Protruding Type) (Without LED Illumination Decompression Unit) (Round Barrel ɸ22/25) A22L A22L-CW-24A-20M White 1pc

Name: OMRON Pushbutton Switch (Square) (Protruding Type) (Without LED Illumination Decompression Unit) (Round Barrel ɸ22/25) A22L A22L-CW-24A-20M White 1pc
Brand: OMRON
SKU: S032197617
Price: 479900 IDR
Availability: InStock

#Nomor SKU S032197617

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	A22L-CW-24A-20M
Unit	1pc
Protection Class	IP65
Contact Resistance (miliΩ)	100 or less (initial value)
Storage Temperature (°C)	-40 to 70 (with no icing or condensation)
Light Source	LED
Allowable Operation Frequency (times/minute)	Mechanical: Up to 60, Electrical: 30
Shock Resistance Destruction (m/s²)	Up to 1000
Shock Resistance Malfunction (m/s²)	Up to 600 (within malfunction 1ms)
Terminal Shape	Screw terminal
Electrical Durability (times)	500K or more
Pollution Degree (Environment to Use)	3 (IEC60947-5-1)
PTI (Proof Tracking Index)	175
Applicable Voltage (V)	AC/DC 24
Illuminated color	White
Overall Movement TT (Reference) (mm)	Max.5.5 (1a1b contact)
Power Required For Overall Movement (TTF) (N)	29.4 (1a1b contact)
Rated Lamp Current (A)	8
Insulation Resistance (MΩ)	100 or more (with DC500V mega)
Operating Ambient Temperature (°C)	-20 to 55 (with no icing or condensation)
Contact Configuration	2a
M Code	38996526
Berat (Kg)	0.1
Tanggal Produk Terdaftar	28 June 2022
Terakhir Diperbaharui	01 April 2026
