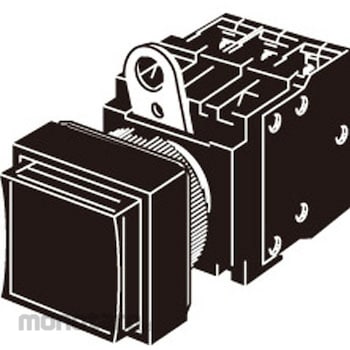

OMRON Pushbutton Switch (Square) (Protruding Type) (Without LED Illumination Decompression Unit) (Round Barrel ɸ22/25) A22L
#Grup produk P106919284
Spesifikasi
| Protection Class | IP65 |
|---|---|
| Storage Temperature (°C) | -40 to 70 (with no icing or condensation) |
| Light Source | LED |
| Shock Resistance Destruction (m/s²) | Up to 1000 |
| Applicable Voltage (V) | AC/DC 24 |
| Contact Resistance (miliΩ) | 100 or less (initial value) |
| Electrical Durability (times) | 500K or more |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Operating Ambient Temperature (°C) | -20 to 55 (with no icing or condensation) |
| Overall Movement TT (Reference) (mm) | Max.5.5 (1a1b contact) |
| PTI (Proof Tracking Index) | 175 |
| Pollution Degree (Environment to Use) | 3 (IEC60947-5-1) |
| Power Required For Overall Movement (TTF) (N) | 29.4 (1a1b contact) |
| Rated Lamp Current (A) | 8 |
| Shock Resistance Malfunction (m/s²) | Up to 600 (within malfunction 1ms) |
| Terminal Shape | Screw terminal |
