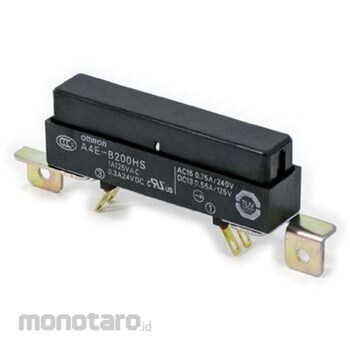

OMRON Enable Switch A4E A4E-B200HS 1pc

Name: OMRON Enable Switch A4E A4E-B200HS 1pc
Brand: OMRON
SKU: S032050226
Price: 599900 IDR
Availability: InStock

#Nomor SKU S032050226

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	A4E-B200HS
Unit	1pc
Protection Class	IP65
Rated Carrying Current (A)	2.5
Contact Resistance (miliΩ)	100 or less (initial value)
Rated Insulation Voltage (V)	250
Storage Temperature (°C)	-25 to 65
Vibration Resistance	10 to 55Hz, single amplitude 0.75mm or more
Shock Resistance (m/s²)	150
Shape	Enable 2-contact type
Rated Impulse with Stand Voltage (kV)	Different polarity: 4.0, Same polarity: 2.5
Electrical Durability (times)	100K or more
Minimum Applicable Load (V-mA)	DC 24-4
Cover	Without cover
Mounting Bracket	Horizontal mounting type metal fittings
Rated Load (V-mA)	24 DC-300 (inductive load), 125 AC-1000 (resistive load)
Relative Humidity	35 to 85% (with no condensation)
Insulation Resistance (MΩ)	100 or more (with DC500V mega)
Mechanical Durability (times)	OFF - ON: More than 1million times; OFF - ON - OFF (directly open) : More than 100K times
Operating Ambient Temperature (°C)	-10 to 55 (no freezing)
Contact Configuration	Enable 2 contacts
M Code	46436923
Berat (Kg)	0.1
Tanggal Produk Terdaftar	27 June 2022
Terakhir Diperbaharui	01 April 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

3 position enable switch for safe operation of the robot and a reliable click feeling.
Conforms to US standard ANSI / RIA R15.06-1999. 3 position switch is required.
Free selection of switch mounting direction.
