3 position enable switch for safe operation of the robot and a reliable click feeling.
Conforms to US standard ANSI / RIA R15.06-1999. 3 position switch is required.
Free selection of switch mounting direction.

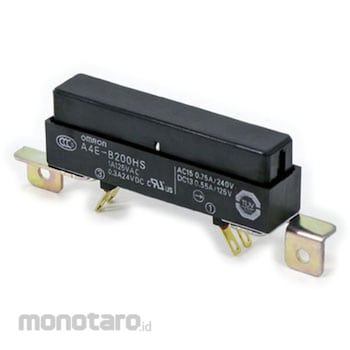

OMRON Enable Switch A4E
#Grup produk P106897690
Spesifikasi
| Protection Class | IP65 |
|---|---|
| Storage Temperature (°C) | -25 to 65 |
| Vibration Resistance | 10 to 55Hz, single amplitude 0.75mm or more |
| Contact Resistance (miliΩ) | 100 or less (initial value) |
| Electrical Durability (times) | 100K or more |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Minimum Applicable Load (V-mA) | DC 24-4 |
| Operating Ambient Temperature (°C) | -10 to 55 (no freezing) |
| Rated Carrying Current (A) | 2.5 |
| Rated Impulse with Stand Voltage (kV) | Different polarity: 4.0, Same polarity: 2.5 |
| Rated Insulation Voltage (V) | 250 |
| Rated Load (V-mA) | 24 DC-300 (inductive load), 125 AC-1000 (resistive load) |
| Relative Humidity | 35 to 85% (with no condensation) |
| Shock Resistance (m/s²) | 150 |
