An axial fan that achieves optimal cooling.
Designed for low noise, long life and environmental resistance.
The bearing uses highly reliable ball bearings.

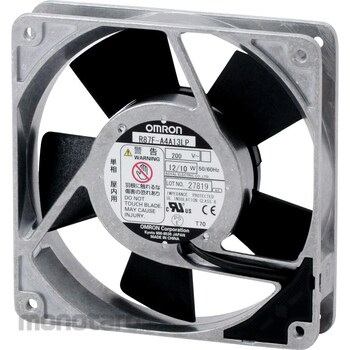

OMRON AC Axial Fan R87F R87F-A4A13LP 1pc
Rp549.900
Persediaan
Spesifikasi Produk
| Model Number | R87F-A4A13LP |
|---|---|
| Unit | 1pc |
| Storage Temperature (°C) | -40 to 85 (no freezing) |
| Frequency (Hz) | 50/60 |
| Included Bearing | ball bearing |
| Input Voltage (V) | AC 200 |
| Insulation class | IEC Class B (130°C), UL Class A (105°C), CSA Class A (105°C) |
| Isolation Voltage (V) | AC 2000 (1min.) Power supply connection part and non-charged metal part |
| Fan Blade Material | Glass-filled polycarbonate |
| Material (Frame) | Aluminium Die Casting |
| Maximum Air Volume (m³/minute) | 1.3/1.5 (50/60Hz) |
| Maximum Static Pressure at 50/60Hz (Pa) | 20/24 |
| Mounting Hole Spacing Square (mm) | 120x120 |
| Protection Method | Impedance protection |
| Rated Current (A) | 0.070/0.055 (at 50/60Hz) |
| Rated Input Power (W) | 44905 (50/60Hz) |
| Rated Rotation Speed (rpm) | 1700/2000 (50/60Hz) |
| Sound Pressure Level (dB) | 32/34 (50/60Hz) |
| Shape | Square |
| Allowable Voltage Fluctuation (%) | 85 to 110 of rated voltage |
| Characteristic | standard |
| Thickness (mm) | 25 |
| M Code | 08592123 |
| Berat (Kg) | 0.4 |
| Tanggal Produk Terdaftar | 27 June 2022 |
| Terakhir Diperbaharui | 20 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Plug cords, finger guards and filters are sold separately.Feature
Axial flow fan that realizes optimum cooling.Designed for low noise, long life, and environmental resistance.
The bearing uses highly reliable ball bearings.
