Design:
with a single radial clamping screw per hub ISO 4762
backlash-free, blind mate press-fit connection
Temperature range: -30° C to +110° C (-22° F to 230° F)
Tolerance: On the hub/shaft connection 0.01 to 0.05 mm.
Service life: These couplings have an infinite life and are maintenance- free if the technical ratings are not exceeded.
Material:
bellows made of highly flexible high-grade stainless steel
the clamping hubs and tapered female segment on the bellows face are aluminium
tapered segment on the hub face: glass-fiber reinforced plastic deposited onto an aluminium hub.
Speeds:
up to 10,000 rpm
over 10,000 rpm available with balanced version.
Non-standard application: Custom designs with varied tolerances, keyways, non-standard material and bellows are available upon request.
Properties of Miniature Coupling model MK5:
absolutely backlash-free and torsionally rigid
compensates for 3-axis of misalignment
easy mounting and dismounting
electrically insulated
no wear
low moment of inertia

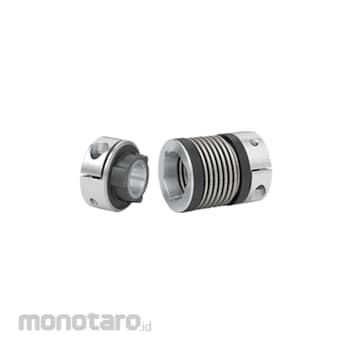

R+W Coupling Miniature Bellows MK5 Series (Kopler) MK5/20/37 1pc
Rp4.699.900
Persediaan
Spesifikasi Produk
| Model Number | MK5/20/37 |
|---|---|
| Unit | 1pc |
| Rated Torque (N m) | 2 |
| Overall Length (Inserted) (A+0.2) (mm) | 37 |
| Inside Diameter Possible From Ø to Ø H7 (D1) (mm) | 3-12.7 |
| Inside Diameter Possible From Ø to Ø H7 (D2) (mm) | 3-12.7 |
| Outside Diameter (B) (mm) | 25 |
| Moment of Inertia (Jges.) (gcm²) | 28 |
| Torsional Stiffness (N m/rad) | 1200 |
| Tightening Torque of The Fastening Screw (N m) | 2.3 |
| Distance Between Centerlines (F) (mm) | 8 |
| Distance (G) (mm) | 4 |
| Mounting Length (C1) (mm) | 13 |
| Mounting Length (C2) (mm) | 16 |
| Preload Compression (H) (mm) | 0.5 |
| Lateral ± (Max.) (mm) | 0.15 |
| Angular ± (Max.) (degree) | 1.5 |
| Axial Recovery Force at Max. Preload Compression (N) | 3 |
| Axial (Max.) (mm) | 0.5 |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 09 June 2022 |
| Terakhir Diperbaharui | 26 January 2026 |
