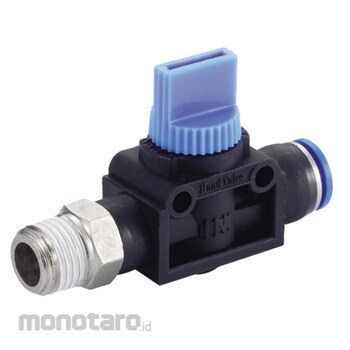

CDC Pneumatics Hand Valve HVF Type HVF03-08 R 3/8 1pc
Rp129.900
Persediaan
Spesifikasi Produk
| Model Number | HVF03-08 |
|---|---|
| Unit | 1pc |
| Thread | R 3/8 |
| Inner Diameter (mm) | 8 |
| Dimension H (mm) | 17 |
| Outer Diameter (mm) | 14.8 |
| Diameter ∅C (mm) | 16.3 |
| Dimension N (mm) | 18.0 |
| Dimension E (mm) | 40.3 |
| Dimension A (mm) | 11.0 |
| Dimension B (mm) | 18.7 |
| Dimension K1 (mm) | 25.6 |
| Dimension K2 (mm) | 13.9 |
| Length L1 (mm) | 39.6 |
| Length L2 (mm) | 27.9 |
| Dimensions m1 (mm) | 8.2 |
| Dimensions m2 (mm) | 19.0 |
| Applicable Fluid Type | AIR (No other type of gas or liquid) |
| Working Pressure Range (PSI) | 0-150 |
| Negative Pressure (inHg) | -29.5 |
| Working Temperature Range (°F) | 32-140 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 03 June 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Do not use in water applicationFeature
ㆍThe source of pressure can be completely shut off by simply turning the knob.ㆍThree-way directional control configuration releases the residual internal pressure on the output side when manually closed.
ㆍIdeal for inspecting or repairing any devices without compromising the safety.
ㆍDirectionality of airflow may be selected from the tubing or threaded input side to the tubing or threaded output side.
