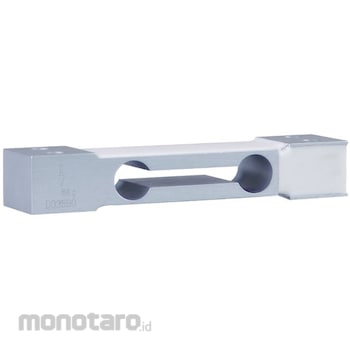

ZEMIC Single Points Load Cell L6D 35kg 1unit

Name: ZEMIC Single Points Load Cell L6D 35kg 1unit
Brand: ZEMIC
SKU: S031799195
Price: 809900 IDR
Availability: InStock

#Nomor SKU S031799195

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	L6D
Unit	1unit
Capacity (kg)	35
Input Resistance (ohm)	406 ±6
Zero Balance (%FS)	≤ ±2.0
Safe Overload (%FS)	150
Ultimate Overload (%FS)	300
Output Resistance (ohm)	350 ±3
Insulation Resistance (MΩ)	≥5000 (at 50V)
Output Sensitivity (=FS) (mV/V)	2.0 ±0.02
Recommended Excitation Voltage (V)	5-12
Maximum Excitation Voltage (V)	18
Compensated Temperature (°C)	-10 to 40
Operating Temperature (°C)	-35 to 65
Storage Temperature (°C)	-40 to 70
Element Material	Aluminium
Ingress Protection (acc. to EN 60529)	IP65
Recommended Torque on Fixation Bolts (N m)	10
Berat (Kg)	2.0
Tanggal Produk Terdaftar	18 May 2022
Terakhir Diperbaharui	27 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Aluminium-alloy IP65 single point load cell.
Colourless anodized.
Suitable for pricing scales, counting scales, bench scales, etc.
Maximum platform size: 250 x 350 mm.
test certificate no. TC7868 Revision 1 C of C no R60/2000-NL1-12.52
Certificate no. 11-012

Peringatan

Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya. Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.

Feature

-High Accuracy -Aluminum parallel beam construction -Max. platform size: 400x400mm -Intergral installation -With OIML approval: (PTB: D09-03.21). -Aluminum construction, silicone adhesive sealed, surface anodized and anti-corrosion -Integral structure and easy installation

Use

Suitable for pricing scale, platform scale and other electronic weighing devices.
