The pumps "TMB" belong to Argal's BASIS range and feature, single stage, centrifugal impeller and magnetic drive.
The range of TMB pumps includes five models to deliver flows from 15 to 70 l/min.

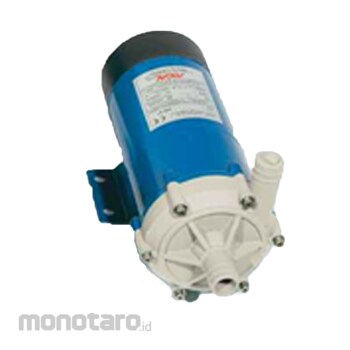

ARGAL Thermoplastic Centrifugal Pump TMB Series TMB 20 WRV N1 B N 1 1unit
Rp6.799.900
Persediaan
Spesifikasi Produk
| Model Number | TMB 20 WRV N1 B N 1 |
|---|---|
| Unit | 1unit |
| Phase | 1 |
| Inlet Hose (mm) | 18 |
| Voltage (V) | AC 220-240 |
| Speed (rpm) | 2800/3200 (50/60Hz) |
| Frequency (Hz) | 50/60 |
| Outlet Hose (mm) | 17 |
| Execution | Glass fibre reinforced Polypropylene (30%) |
| Guide Bushing | GFR/PTFE |
| Input Power (W) | 29/39 (50/60Hz) |
| Output Power (W) | 15/21 (50/60Hz) |
| Internal Structure | N₁ |
| Current (50/60Hz) (A) | 0.13/0.18 |
| O-Ring Materials | FKM |
| Max. Head Pump (50/60Hz) (m) | 3.0/4.0 |
| Maximum Capacity Pump at 50/60Hz (L/minute) | 21/25 |
| Temperature of the Liquid Pumped (°C) | 0-60 |
| Max. Viscosity (cPt) | 20 |
| Environment Temperature (°C) | 0-45 |
| Connection Thread (inch) | thr. BSP, inlet: 3/4; outlet: 3/4 |
| Data Motor | Standard |
| Berat (Kg) | 21.5 |
| Tanggal Produk Terdaftar | 28 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
TMB pumps do not run dry and have to be flooded.Pumping dirty liquid or liquid containing abrasive solids in suspension may reduce the operating life and/or impair the performances of these pumps.
Feature
Include Motor 1Ph 220/240V-50/60Hz. - Light duty chemical transfer pumps. - 240VAC Single Phase 2 pole splashproof motor. - 0-60°C Temperature range. - Max 1.1 SG. - Up to 30% Acid or Alkaline Applications with standard PP liquid end. - Viton or EPDM O-ring. - TMB10 available in 12VDC with Noryl head.Ketentuan dan Kondisi Barang
