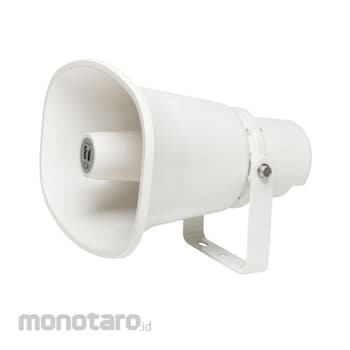

TOA Powered Horn Speaker ZH-P620S-AS Q7 1unit

Name: TOA Powered Horn Speaker ZH-P620S-AS Q7 1unit
Brand: TOA
SKU: S031647465
Price: 2299900 IDR
Availability: InStock

#Nomor SKU S031647465

TOA

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	ZH-P620S-AS Q7
Unit	1unit
Power Source (V)	12 DC, 2A (DC Socket "+" Type A: 5.5x2.1mm)
Power Consumption (W)	15 (1.25A) at Rated output; 25 (2.10A) at Maximum output
Input	0 dB, 10kΩ, Unbalanced (RCA plug)
Signal Gain	8, 16, 24, 32dB (Factory pre-set to 16dB)
Volume Adjustment	Internal volume control (Factory pre-set to max. position)
Sound Pressure Level (dB)	113 (1 W, 1 m at 500 Hz to 2.5 kHz peak level) Max. SPL (above 120dB)
Frequency Response (Hz)	250 - 10000
Operating Temperature (°C)	-20 to +55 (must be free from dew condensation)
Dust/Water Protection	IP65
Finish	Horn Flare: HIPS resin, White (RAL 9010 equivalent); Reflector Horn and Case: ABS resin, White (RAL 9010 equivalent); Bracket, screws and bolts: Stainless steel
Cable Length (m)	2 Flying Lead (RCA plug) & DC socket ("+")
Option	AD-5000-2 (LTE24E-S2-1) AC Adapter
Dimensions (WxHxD) (mm)	292x230x280
Berat (Kg)	1.8
Tanggal Produk Terdaftar	27 April 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The ZH-P620-AS Q7 is a highly intelligible and compact horn speaker with a built-in 20W digital power amplifier, that provides public address announcement and remote paging via network video surveillance applications. This powered horn speaker can operate at extreme temperature. It comes with powder-coated finish and stainless steel screws to ensure its weatherproof capability. Ideal choice for both indoor and outdoor application at restricted facilities, train stations, airports and many more.
