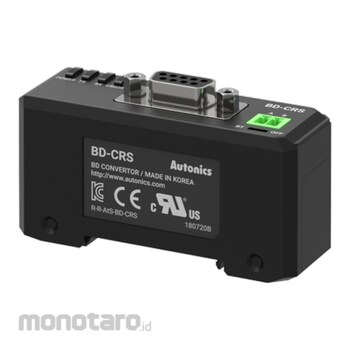

Autonics Sensor Communication Converter BD-C Series BD-CRS 1pc

Name: Autonics Sensor Communication Converter BD-C Series BD-CRS 1pc
Brand: Autonics
SKU: S031193450
Price: 5399900 IDR
Availability: InStock

#Nomor SKU S031193450

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	BD-CRS
Unit	1pc
Function	- Real-time monitoring; - Execute every feature of BD series; -and set parameters with external device (Master)
Certification	CE
Vibration (mm)	1.5 amplitude at frequencies from 10-50Hz (for 1minute) in each direction X, Y, Z for 2h
Power Consumption (W)	Max. 2.3
Vibration (m/s²)	300 (approximately 30G) in each direction X, Y, Z for 3 times
Standard Protection	IP40 (Standard IEC)
Environment Temperature Level (°C)	-10 to 50, enclosed space: -15 to 60
Humidity Level	Under 85%RH, enclosed space: under 85%RH
Material	Case: Polycarbonate
Communication Speed (bps)	9600, 19200, 38400, 115200 (default setting)
Power Supply	Using power from the amplifier unit
Communication Function	RS-232C, RS-485
Indication	4 LED status indicator
Sold Separately	Communication converter (SCM-38I, SCM-US48I, SCM-WF48)
Accessories	Side connector, Connector for RS485
Berat (Kg)	0.1
Tanggal Produk Terdaftar	18 April 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The BD-C series communication converters allow RS232C/RS485 communication for BD series laser displacement sensors. The communication converters can be powered by the sensor amplifier unit by connecting the units using the side connector. The atDisplacement laser displacement sensor software allows users to batch parameter settings, monitor measured values and outputs in real-time, and set communication speed and addresses without connecting to host devices.

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details
