Autonics Sensor Communication Converter BD-C Series
#Grup produk P108469701
Kondisi Barang:
Authorized Partner
Spesifikasi
| Accessories | Side connector, Connector for RS485 |
|---|---|
| Communication Function | RS-232C, RS-485 |
| Communication Speed (bps) | 9600, 19200, 38400, 115200 (default setting) |
| Function | - Real-time monitoring; - Execute every feature of BD series; -and set parameters with external device (Master) |
| Humidity Level | Under 85%RH, enclosed space: under 85%RH |
| Indication | 4 LED status indicator |
| Certification | CE |
| Environment Temperature Level (°C) | -10 to 50, enclosed space: -15 to 60 |
| Material | Case: Polycarbonate |
| Power Consumption (W) | Max. 2.3 |
| Power Supply | Using power from the amplifier unit |
| Sold Separately | Communication converter (SCM-38I, SCM-US48I, SCM-WF48) |
| Standard Protection | IP40 (Standard IEC) |
| Vibration (m/s²) | 300 (approximately 30G) in each direction X, Y, Z for 3 times |
| Vibration (mm) | 1.5 amplitude at frequencies from 10-50Hz (for 1minute) in each direction X, Y, Z for 2h |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

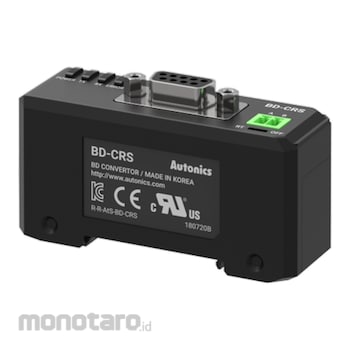

The BD-C series communication converters allow RS232C/RS485 communication for BD series laser displacement sensors. The communication converters can be powered by the sensor amplifier unit by connecting the units using the side connector. The atDisplacement laser displacement sensor software allows users to batch parameter settings, monitor measured values and outputs in real-time, and set communication speed and addresses without connecting to host devices.
