Autonics Pressure Sensors PSQ Series PSQ-BC1-RC1/8 1pc
Rp3.399.900
Persediaan
Spesifikasi Produk
| Model Number | PSQ-BC1-RC1/8 |
|---|---|
| Unit | 1pc |
| Certification | CE |
| Power Supply (V) | 12-24 DC ±10% (ripple P-P: Max. 10%) |
| Current Consumption (mA) | Max. 50 |
| Control Output | Choose one on parameter setting; NPN open collector output; PNP open collector output |
| Pressure Port | Rc1/8 |
| Pressure Type | Compound pressure |
| Pressure Size Range (kPa) | -100 to 1000 |
| Display Pressure Unit | MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O |
| Hysteresis Control Output | Min. display interval |
| Control Output Repeat Error | ±0.2% F.S. ±Min. display interval |
| Response Time Control Output (ms) | Select one: 2.5, 5, 10, 25, 50, 100, 250, 500, 1,000, 5,000 |
| Environment Temperature Level (°C) | -10 to 50, enclosed space: -20 to 60 |
| Humidity Level | 30-80% RH, enclosed space: 30-80% RH |
| Material | Front case: Polycarbonate, Back case: Polyamide 6, Pressure port: Stainless steel 316L |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

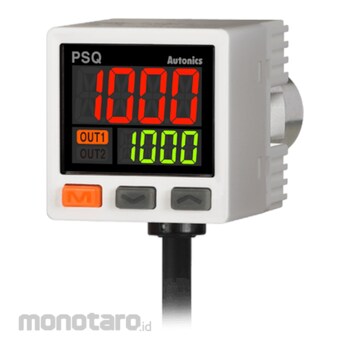

The PSQ series dual digital display pressure sensors can simultaneously display PV and SV for easier status readings. The 12-segment LCD display is capable of displaying various alphanumeric characters for clear identification, and the main (PV) display can be displayed in 3 different colors depending on status or configuration. Installation and configuration of multiple sensors is made easy with the copy parameter settings function and users can switch between NPN and PNP open collector output options through parameter configuration settings.
Warning
The unit is sealed structure. It is based on atmospheric pressure 101.3kPa.In hysteresis output mode, it is variable.
Select one between analog output (voltage or current) and external input.
The weight includes packaging. The weight in parenthesis is for unit only.
The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
Sold separately: Front cover (PSO-P01), Panel bracket (PSO-B02)Image on this page only as Representative Image, Please check the specifications of each size and color for details
