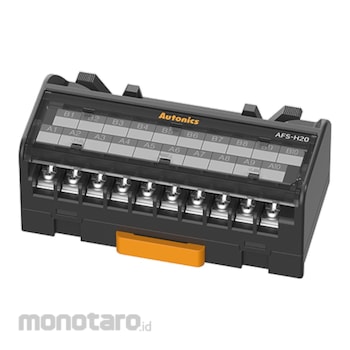

Autonics I/O Terminal Blocks AFS Series AFS-H20 1pc
Rp309.900
Persediaan
Spesifikasi Produk
| Model Number | AFS-H20 |
|---|---|
| Unit | 1pc |
| Certification | CE |
| Dielectric Strength (V/Hz) | 2700 AC-50/60 for 1minute |
| Current Range (A) | Max. 1 |
| Terminal Number | 20EA |
| Terminal Pitch (mm) | 7 |
| Voltage Range (V/Hz) | Max. 125 DC, 125 AC-50/60 |
| Insulation Resistance (MΩ) | ≥1000 (at 500VDC megger) |
| Environment Temperature Level (°C) | -15 to 55, enclosed space: -25 to 65 |
| Humidity Level | 35-85%RH, enclosed space: 35-85%RH |
| Material | Case & Base: Modified Polyphenylene Oxide, Terminal Pin: Brass |
| Number of Connector Pins | 20 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The AFS series interface terminal block is ideal for PLCs and motion device input and output. The terminal block features screw connection type for easy and secure connection. The compact design with 2-line arrangement allows flexible installation in limited spaces.
Warning
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
