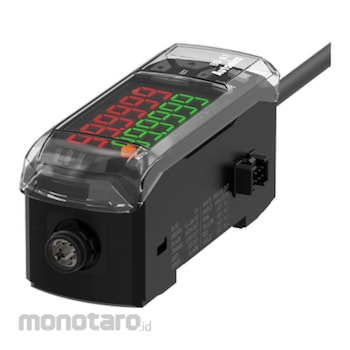

Autonics Displacement Sensor Head and Unit BD Series BD-A1 1pc
Rp5.399.900
Persediaan
Spesifikasi Produk
| Model Number | BD-A1 |
|---|---|
| Unit | 1pc |
| Vibration (mm) | 1.5 amplitude at frequencies from 10-55Hz (for 1minute) in each X, Y, Z direction for 2h |
| Power Supply (V) | 10-30 DC ±10% (When connecting a BD-C serial communication converter, 12-30 DC) |
| Power Consumption (W) | Max. 2.8 (30VDC) |
| Noise Immunity | Square fault with fault simulator (pulse width: 1µs, voltage: ±500V, cycle: 10ms) |
| Dielectric Strength (V/Hz) | 1000 AC-50/60 for 1minute |
| Vibration (m/s²) | 300 (approximately 30G) in each direction X, Y, Z for 3 times |
| Standard Protection | IP40 (Standard IEC) |
| Residual Voltage (V) | NPN: Max. 1.5 , PNP: Max. 2.5 |
| Protection circuit | Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit |
| Insulation Resistance (MΩ) | Min. 20 (at 500VDC megger) |
| Response Time (ms) | 0.33, 0.5, 1, 2, 5 (5-step adjustment) |
| Environment Temperature Level (°C) | -10 to 50, enclosed space: -15 to 60 |
| Humidity Level | Under 85%RH, enclosed space: under 85%RH |
| Input Control | No voltage (small signal) input |
| Display Cycle (ms) | Approx. 100 |
| Rating Result | NPN or PNP open collector output (Load current: Max. 100mA) |
| Alarm Output | NPN or PNP open collector output (Load current: Max. 100mA) |
| Minimum Unit Display (µm) | BD-030: 1, BD-065: 2, BD-100: 4 |
| Display Range (mm) | 99.999-99.000 (4-step adjustment) |
| Display Method | Dual display with 11-segment, 6-digit LED |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The BD series laser displacement sensors can measure thickness, width, level difference, disparity, curve, evenness of target objects by detecting the amount of displacement. The sensors offer accurate and stable measurement with minimal influence from target color or material. The sensor head and amplifier unit are detachable for easier maintenance and up to 8 sensor amplifier units can be interconnected with mutual interference prevention function.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsKetentuan dan Kondisi Barang
Pengembalian Barang 14 hari
Berubah pikiran tidak dapat diterima. Lihat selengkapnya
