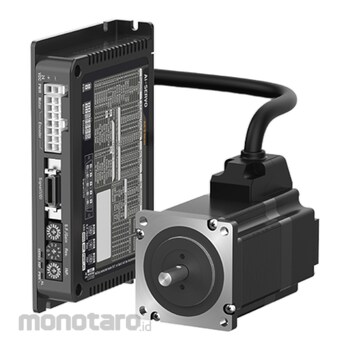

Autonics Closed Loop Stepper System AiS Series AiS-60MA Set driver + motor 1pc
Rp6.899.900
Persediaan
Spesifikasi Produk
| Model Number | AiS-60MA |
|---|---|
| Unit | 1pc |
| Applied Motor Driver | 2-phase closed loop stepper motor frame size 60mm |
| Resolution Driver | 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR (selectable by SW2) |
| Max. Drivers Run Current (A/Phase) | 3.5 |
| Power Consumption Drivers Maximum Current Consumption (W) | 240 |
| Structure Protection Driver | IP20 |
| Certification Driver | CE |
| Motor Basic Step Angle (Full/Half) (degree) | 1.8/0.9 |
| Max. Holding Torque (kgf.cm) | 22.43 |
| Moment of Inertia Motor (g.cm²) | 490 |
| Motor Winding Resistance (ohm) | 1.23 |
| Rated Current Motor (A/Phase) | 3.5 |
| Motor Length (mm) | 102.8 |
| Motor Operation Method | Bipolar |
| Motor Resolution | 10000PPR (2500PPRx4-multiply) |
| Output Phase Motor | A,, B,, Z, |
| Maximum Response Frequency (kHz) | 300 |
| Driver Operation Method | Bipolar constant current drive |
| Output Drivers | In-Position, Alarm Out, Encoder signal (A,, B,, Z,) |
| Shaft Type Motor | Single Phase |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The AiS series closed loop stepper motor system offers accurate and precise position control through feedback from integrated encoders. The motors feature quick response rates for ideal short pitch drive. Gain tuning is easy with the external gain adjuster.
Warning
Max. power consumption during operation. When changing the load rapidly, instantaneous peak current may increase. The capacity of power supply should be over 1.5 to 2 times of max. power consumption.RUN current varies depending on the input RUN frequency and max. RUN current at the moment varies also.
Max. holding torque is standard torque when supplying the rated current (2-phase holding) and stopping the motor for comparing the specifications of motors.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
