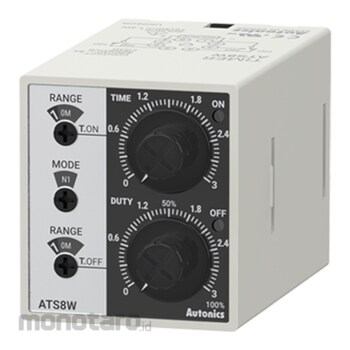

Autonics Analog Timers ATS8W Series ATS8W-43 1pc

Name: Autonics Analog Timers ATS8W Series ATS8W-43 1pc
Brand: Autonics
SKU: S031174244
Price: 379900 IDR
Availability: InStock

#Nomor SKU S031174244

Autonics

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	ATS8W-43
Unit	1pc
Certification	CE
Setting Range	0.3-3.0s, 3-30s, 0.3-3.0min, 3-30min, 0.3-3h
Control Output	Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1+Time-limit SPDT (1c): 1 depending on output operation mode
Environment Temperature Level (°C)	-10 to 55, enclosed space: -25 to 65
Humidity Level	35-85%RH
Accessories	Bracket
Operation Method	Time setting
Output Operation	Flicker
Operation Time	Power On Start
Terminal	8-pin plug
Power Supply (V/Hz)	100-240 AC, 24-240 DC/ (50/60)
Berat (Kg)	0.1
Tanggal Produk Terdaftar	18 April 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The ATS8W/11W series analog twin timers feature 6 output operation modes and 12 time setting ranges for application in diverse timing control tasks. The timers feature independent dials for separate ON/OFF timing control. Simple time configuration and operation is possible with dual analog dials. The ATS8W models support 8-pin connection and the ATS11W models support 11-pin connection.

Warning

Sockets (8-pin sockets: PG-08, PS-08(N), PS-M8/11-pin sockets: PG-11, PS-11(N)) are sold separately.
Refer to time specifications for control time setting range by model.
The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
The weight includes packaging. The weight in parenthesis is for unit only.Image on this page only as Representative Image, Please check the specifications of each size and color for details
