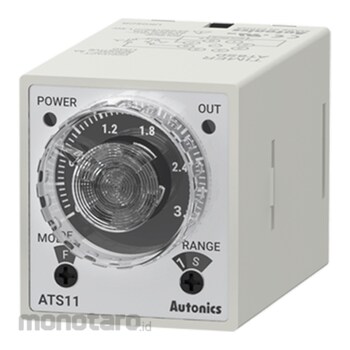

Autonics Analog Timers ATS Series ATS11-23D 1pc
Rp319.900
Persediaan
Spesifikasi Produk
| Model Number | ATS11-23D |
|---|---|
| Unit | 1pc |
| Min. Signal Width (ms) | Start, Inhibit, Reset: (No-Voltage Input) - Short-Circuit Impedance: Max. 1KΩ; Residual Voltage: Max. 0.5V, Open-Circuit Impedance: Min. 100KΩ |
| Certification | CE |
| Setting Range | 0.3-3.0s, 3-30s, 0.3-3.0min, 3-30min, 0.3-3h |
| Control Output | Time-limit SPDT (1c): 2 |
| Environment Temperature Level (°C) | -10 to 55, enclosed space: -25 to 65 |
| Humidity Level | 35-85%RH |
| Accessories | Bracket |
| Operation Method | Time setting |
| Output Operation | Signal On Delay, SIgnal Off Delay, SIGNAL On-Off Delay, Flicker, Interval |
| Operation Time | Signal On Start |
| Terminal | 11-pin plug |
| Power Supply (V/Hz) | 24 AC, 24 DC/ (50/60) |
| Input Signal Method | No-voltage input (NPN) |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The ATS series compact multi-function analog timers feature 6 output operation modes and 12 time setting ranges for application in diverse timing control tasks. The timers also feature a wide time setting range between 0.1 seconds to 30 hours depending on the model. Simple time configuration and operation is possible with the analog dial control. The ATS series is available in 8-pin or 11-pin plug models.
Warning
Sockets (8-pin sockets: PG-08, PS-08(N)/11-pin sockets: PG-11, PS-11(N)) are sold separately.Refer to time specifications for control time setting range by model.
The weight includes packaging. The weight in parenthesis is for unit only.
The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.Image on this page only as Representative Image, Please check the specifications of each size and color for details
