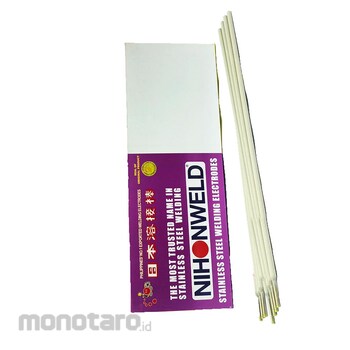

Nihonweld Stainless Steel Welding Electrodes NSW 316L 3.2mm 1pack(5kg)

Name: Nihonweld Stainless Steel Welding Electrodes NSW 316L 3.2mm 1pack(5kg)
Brand: Nihonweld
SKU: S031116947
Price: 889900 IDR
Availability: OutOfStock

#Nomor SKU S031116947

Wishlist

0 Ulasan

Spesifikasi Produk

Unit	1pack(5kg)
Diameter (mm)	3.2
Length (mm)	350
Current (A)	-Flat= 60-130; -Vertical and Overhead= 60-130
Welding Positions	All Positions Except Vertical Down
Approvals	ABS
Compatible for	AWS E316L-16
JIS Specification	D316-16
Other Specification	DIN ETi1912326
Typical Chemical Composition of All Weld Metal Deposits (%)	C= 0.02, Si= 0.38, Mn= 1.58, P= 0.022, S= 0.010, Ni= 12.27, Cr= 9.27, Mo= 2.23
Tensile Strength (N/mm²)	540
Elongation (%)	47
Tensile Strength (ksi)	55
Berat (Kg)	5.0
Tanggal Produk Terdaftar	02 April 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

NSW-316 is a stainless steel electrode designed for welding 18/8/Mo stainless steels, AISI 316, 316L, and 317 austenitic stainless steel
Features austenitic and corrosion-resistant weld deposit of low carbon 19% Cr-12% Ni-2.8% Mo, which ensures against intergranular carbide precipitation, good resistance to pitting corrosion, and crevice corrosion by non-oxidizing acids intended applications where service temperatures do not exceed 400ºC
High deposition rate and efficiency
Self-peeling slag
The finished welds exhibit a slightly concave shape with a good cosmetic appearance and requires little to no post weld dressing.
Ideal for both fillet and butt welding applications
