Dual function compression and tension installation
Universal low profile load cell
Adjustable height dimension
High accuracy
5 core high quality orange cable
Can use for testing machine, crane, mining, hoper, tank, axle etc

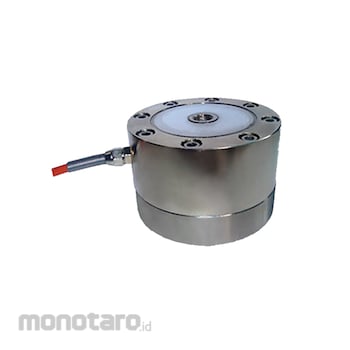

MKcells Load Cell Tension&Compression MK-LPC 50t 1unit
Rp68.999.900
Persediaan
Spesifikasi Produk
| Model Number | MK-LPC |
|---|---|
| Unit | 1unit |
| Capacity (t) | 50 |
| Rated Output | 2.0±0.006m V/V |
| Insulation Resistance (MΩ) | ≥5000 |
| Cable Diameter (mm) | 6 |
| Temperature Operating (°C) | -30 to 70 |
| Excitation Recommended (V) | 10-12 (DC) |
| Protection Class | IP67 |
| Material | Alloy steel |
| Cable Length (m) | 12 |
| Excitation Maximum (V) | 15 (DC) |
| Max. Safe Overload | 150%F.S |
| Total Error | ±0.05%F.S(2,3,5t):±0.1%F.S(10,20t) |
| Zero Balance | ±1%F.S |
| Creep Error (30min) | ±0.03%F.S |
| TC ZERO | ±0.02%F.S/10°C |
| TC SPAN | ±0.02%F.S/10°C |
| Input Resistence | 400±20Ω |
| Output Resistance | 352±3Ω |
| Ultimate Overload | 200%F.S |
| Berat (Kg) | 11.0 |
| Tanggal Produk Terdaftar | 28 March 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
"- Please confirm the size information and other product details on Attribute Information then place an order.- Image on this page only as Representative Image. It will follow the model number Information"
Feature
Eq. PT-LPC, CAS-LSKetentuan dan Kondisi Barang
