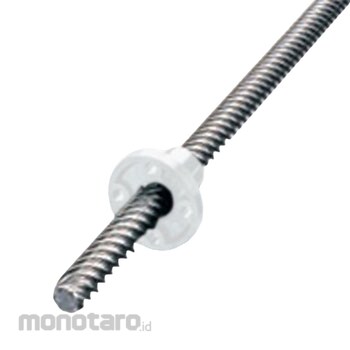

THK Multi Thread Screw Shaft CT 8T+500L 1pc
Rp1.199.900
Persediaan
Spesifikasi Produk
| Model Number | CT 8T+500L |
|---|---|
| Unit | 1pc |
| Lead (mm) | 24 |
| Pitch deviation (mm) | Single maximum: ± 0.025, cumulative maximum: ± 0.2 / 300 |
| Lead Angle (°) | 45 |
| Dimensions dR (mm) | phi 6.2 |
| Shaft Outer Diameter (Φmm) | 9 |
| Single/Multiple Start | 6 |
| Shaft Length (mm) | 500 |
| Mass (kg) | 0.18 |
| Suitable For | Nut: DCMB8T |
| Dimension D0 (mm) | 7.6 phi |
| M Code | 07271625 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 17 March 2022 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Since the tooth profile of the shaft is formed by cold rolling, the surface of the tooth surface is processed and hardened to 25 HV or more, and it has a smooth mirror finish, so it has excellent wear resistance and the movement due to the combination of nuts is also extremely high It ’s smooth. In the internal tissue of the tooth surface, fiber flow occurs along the outline of the tooth profile, the tissue of the root part becomes extremely nectar, and fatigue strength is increased.
