High rigidity and outstanding accuracy!
In order to increase the rigidity of the electromagnetic chuck and suppress changes over time as much as possible in order to improve accuracy, it is not a welded structure, but has a hollow body and case integrated structure using our original processing method.
Unique lightweight design!
The weight of the chuck is reduced as much as possible considering the factors when driving the table of the grinding machine. This contributes to extending the useful life of the grinding machine.
Simple thin shape, strong adsorption power!
As a result of pressing the chuck height to the limit in order to increase the work mounting space of the grinding machine, the overall height is 70 to 80mm for small and medium sizes, and 85mm for large sizes. In spite of its thin shape, a strong adsorbing power is ensured by a unique design to secure electromagnetic coil space.
It is the most popular chuck mainly for grinding work.

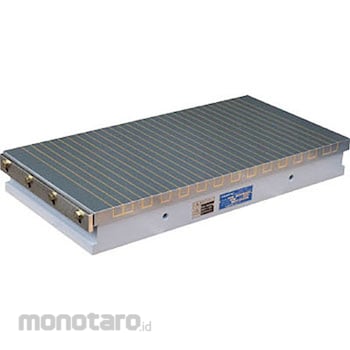

KANETEC Standard Square Electromagnetic Chuck KET-2050F 1pc
Rp80.999.900
Persediaan
Spesifikasi Produk
| Model Number | KET-2050F |
|---|---|
| Unit | 1pc |
| Suitable Electric Accessories | ES-M103B |
| Dimensions (mm) | Width 200 x length 544 x height 70 |
| Voltage (V) | DC90 |
| Current (A) | 0.34 |
| M Code | 86227662 |
| Berat (Kg) | 47.0 |
| Tanggal Produk Terdaftar | 16 March 2022 |
| Terakhir Diperbaharui | 12 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
PERHATIAN: Produk ini mungkin mengandung komponen yang dirancang untuk tegangan 100/110/120V (produk impor).Penggunaan pada tegangan yang berbeda dapat menyebabkan kerusakan atau bahaya, karena tegangan listrik yang umum digunakan di Indonesia adalah 220V.
Feature
Mainly for grinding work, it is the most popular electromagnetic chuck.High rigidity and outstanding accuracy.
Environmentally friendly solderless type.
The most basic standard chuck for grinding applications.
It is an eco-friendly product that eliminates the solder required for manufacturing and uses a special resin.
