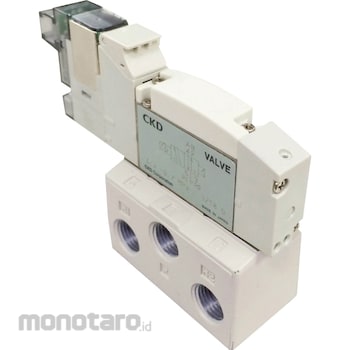

CKD Pilot Operated 5 Port Valve 4Ga / 4Gb Series 4GB110R-06-3 1pc
Rp1.499.900
Persediaan
Spesifikasi Produk
| Model Number | 4GB110R-06-3 |
|---|---|
| Unit | 1pc |
| Effective Section Area (mm²) | 6.5 |
| Wire Connection | Grommet lead wire |
| Type of Acting | Pilot type |
| Piping Connection Size | Rc1/8 |
| Number of Positions | 2 |
| Operating Pressure Range (MPa) | 0.2-0.7 |
| Type of Switching | 4 direction single acting |
| Sonic Conductance C (dm³/(s.bar)) | 1.3 |
| Length (mm) | 72 |
| Width (mm) | 22 |
| Suitable fluid | Air |
| Rated Voltage (V) | DC24 |
| Fluid Temperature (°C) | 5 to 55 (no freezing) |
| Number of Ports | 5 |
| Height (mm) | 63 |
| M Code | 60923022 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 16 March 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Switch the direction (flow path) of the air pressure supplied to the air cylinder and other actuators with the pneumatic circuit.
Feature
Single solenoid type 5-port valve.It is a sub plate type.
With detailed support, safety is enhanced, and a protective cover is standard equipment on the manual device.
Upgraded reliability. Durability is 100 million times or more (single solenoid, according to manufacturer's specified conditions)
The ease of use has been upgraded, and a tool-free manual device has been adopted.
In the case of E-type connector lead wire, the wiring connector can be shared for upper and horizontal wiring and can be changed at the time of installation.
A single valve for mounting the base is also available for maintenance. (Example: 4GB * 19R series)
Equipped with safety functions, upgraded reliability and ease of use
