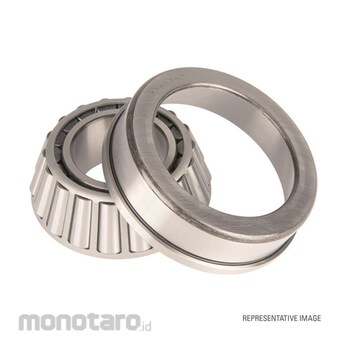

TIMKEN Tapered Roller Bearings Tapered Single 580/572B-SET 481 1pc

Name: TIMKEN Tapered Roller Bearings Tapered Single 580/572B-SET 481 1pc
Brand: TIMKEN
SKU: S030931879
Price: 5299900 IDR
Availability: InStock

#Nomor SKU S030931879

TIMKEN

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	580/572B-SET 481
Unit	1pc
Design Unit	Inch
da - Cone Frontface Backing Diameter (mm)	91
db - Cone Backface Backing Diameter (mm)	98
Da - Cup Frontface Backing Diameter (mm)	134.11
Ab - Cage-Cone Frontface Clearance (mm)	2.5
a - Effective Center Location (mm)	-5.3
C90 - Dynamic Radial Rating (90 million revolutions) (N)	53600
C0 - Static Radial Rating (N)	291000
Ca90 - Dynamic Thrust Rating (90 million revolutions) (N)	37100
Aa - Cage-Cone Backface Clearance (mm)	3
Cage Material	Stamped Steel
D1 - Flange Outer Diameter (mm)	146.241
C1 - Cup Flange Width (mm)	6.35
d - Bore (mm)	82.55
D - Cup Outer Diameter (mm)	139.992
B - Cone Width (mm)	36.098
C - Cup Width (mm)	28.575
T1 - Bearing Width to Flange (mm)	14.288
R-Cone Backface To Clear Radius (mm)	3.6
r-Cup Backface To Clear Radius (mm)	3.3
Berat (Kg)	0.7
Tanggal Produk Terdaftar	25 February 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.

Warning

- Please confirm the size information and other product details on Attribute Information then place an order.
- Image on this page only as Representative Image.
