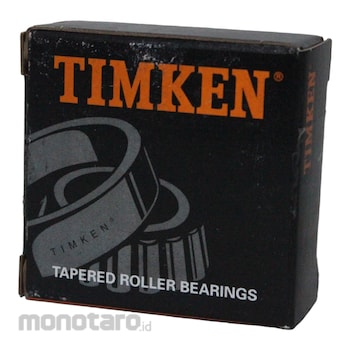

TIMKEN Tapered Roller Bearings Tapered Single 30205 1pc
Rp74.900
Persediaan
Spesifikasi Produk
| Model Number | 30205 |
|---|---|
| Unit | 1pc |
| Design Unit | Metric |
| da - Cone Frontface Backing Diameter (mm) | 31 |
| db - Cone Backface Backing Diameter (mm) | 32.5 |
| Da - Cup Frontface Backing Diameter (mm) | 49 |
| Db - Cup Backface Backing Diameter (mm) | 45.47 |
| Ab - Cage-Cone Frontface Clearance (mm) | 2.3 |
| a - Effective Center Location (mm) | -3.8 |
| C90 - Dynamic Radial Rating (90 million revolutions) (N) | 9570 |
| C0 - Static Radial Rating (N) | 38300 |
| Ca90 - Dynamic Thrust Rating (90 million revolutions) (N) | 6150 |
| Cage Material | Stamped Steel |
| d - Bore (mm) | 25 |
| D - Cup Outer Diameter (mm) | 52 |
| B - Cone Width (mm) | 15 |
| C - Cup Width (mm) | 13 |
| T - Bearing Width (mm) | 16.25 |
| R-Cone Backface To Clear Radius (mm) | 1.02 |
| r-Cup Backface To Clear Radius (mm) | 1.02 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 25 February 2022 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
Warning
- Please confirm the size information and other product details on Attribute Information then place an order.- Image on this page only as Representative Image.
