HITACHI Inverter WJ200N022HFC 3Phase-400V-2.2kW 1pc

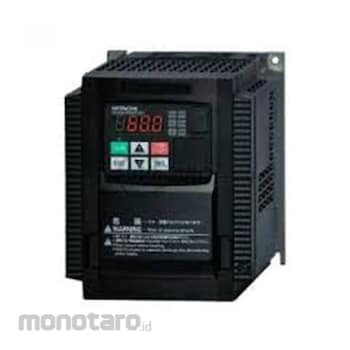

Name: HITACHI Inverter WJ200N022HFC 3Phase-400V-2.2kW 1pc
Brand: HITACHI
SKU: S030751088
Price: 9599900 IDR
Availability: InStock

#Nomor SKU S030751088

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	WJ200N022HFC
Unit	1pc
Applicable Motor Size (kW)	2.2
Rated Input Voltage (V)	3-phase: 380-15% to 480+10%, 50/60Hz ±5%
Minimum Value of Resistor (ohm)	100
Rated Output Capacity (kVA)	3.6
Rated Output Current (A)	5.5
Berat (Kg)	1.9
Tanggal Produk Terdaftar	14 February 2022
Terakhir Diperbaharui	13 June 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Hitachi Industrial WJ200 Series range from 0.1kW-15kW. The WJ200 frequency inverter comes with an integrated auto-tuning function for easy sensorless vector control that realizes high starting torque of 200% or greater, suitable for a variety of applications.

Peringatan

- Mohon untuk mengecek kembali informasi ukuran dan detil produk pada Attribute Information sebelum membeli
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya. Produk yang diterima akan sesuai dengan informasi model number/part number

Feature

Simplified auto-tuning procedure
Dynamic braking unit in all models
Build in EasySequence PLC-like functionality
Dual rating for heavy/normal duty applications
New and more effective trip avoidance functions
Simple position control capability
RoHS Compliance
Side-by-Side installation
Global standards CE, UL, c-UL und c-Tick
Capable of driving permanent magnet as well as standard induction motors
Safe-Stop function
