DESIGN
The Hallite 38 single-lipped wiper/scraper is designed to fit metric housings
including those of ISO 6195A. The proportions of the wiping lip ensure that contact
is maintained with the surface of the rod to remove heavily deposited containments
such as mud and ice.
The outside diameter of the wiper incorporates a crush lip to provide an interference fit
with the housing. This feature help prevent contamination from entering the groove.
The Hallite 38 is molded in a polyester-based material to provide a tough, abrasion resistant wiper for the difficult conditions usually found in mining or earth moving
applications.
The complete range can be used with a split housing, and the majority can be
installed in a blind housing with care

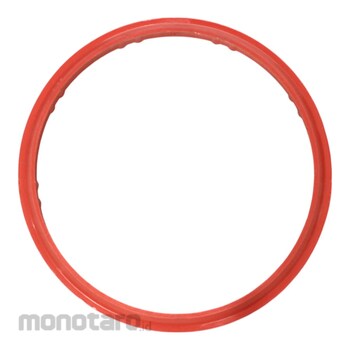

Hallite Seal Wiper Seri 38 125x140x9.5/14mm 1pc
Rp109.900
Persediaan
Spesifikasi Produk
| Model Number | 38 |
|---|---|
| Unit | 1pc |
| Size (mm) | 125x140x9.5/14 |
| ØD1 | 140 |
| L | 9.5/14 |
| Max Preasure (Bar) | 500 |
| Temperature Range (°C) | -30 +100 |
| Maximum Speed (m/s) | 0.5 |
| Dynamic Application | Any Fluids Based on Mineral Oil, HFA (5/95), HFB (60/40 invert emulsion), HFC (Water glycol), Water, Air/Nitrogen, Synthetic Esters (HEES, HFDU) |
| Static Application | Any Fluids Based on Mineral Oil, HFA (5/95), HFB (60/40 invert emulsion), HFC (Water glycol), Water, Air/Nitrogen, Synthetic Esters (HEES, HFDU) |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 24 January 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
