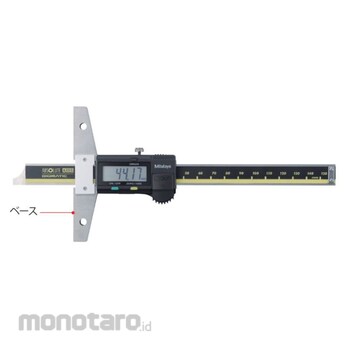

Mitutoyo Digital Depth Gage 571-204-10 450/0.01mm 1pc
Rp12.999.900
Persediaan
Spesifikasi Produk
| Model Number | 571-204-10 |
|---|---|
| Unit | 1pc |
| Units | Metric |
| Length Standard | ABSOLUTE electrostatic capacitance type linear encoder |
| Battery Life | Approx. 3 years under normal use |
| Range (mm) | 0-450 |
| Resolution (mm) | 0.01 |
| Accuracy (mm) | ±0.05 |
| Optional Accessories | 959143, 959149, 959150 |
| Battery | SR44 (1 pc.) 938882 |
| Display | LCD |
| Maximum Response Speed | Unlimited |
| Technology | Digimatic |
| SPC Output | Yes |
| Repeatability (mm) | 0.01 |
| Berat (Kg) | 1.0 |
| Tanggal Produk Terdaftar | 13 December 2021 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Mitutoyo ABSOLUTE Digimatic depth gage features hardened, micro-lapped measuring faces and a base for improved accuracy and wear resistance. The depth gage is constructed of hardened stainless steel and is IP67 rated for exceptional coolant-proof capabilities, making it ideal for use on the shop floor. Measurements are displayed on a digital LCD readout with SPC output for easy, automatic recording.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details
Feature
Available in Metric and Inch/Metric modelsOptional wider extension bases are available (up to 450mm range models)
Convenient mounting holes included on the base for repeatable accuracy
Keeps track of the origin point for the life of the battery
SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Constructed of hardened stainless steel for better durability and longevity
IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
Unnecessary to wipe or clean the scale
Supplied with a fitted plastic case
