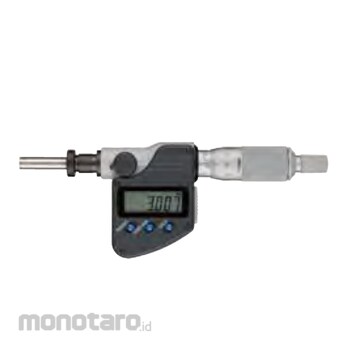

Mitutoyo Digital Micrometer Head Metric 350-252-30 25/0.001mm 1pc
Rp4.699.900
Persediaan
Spesifikasi Produk
| Model Number | 350-252-30 |
|---|---|
| Unit | 1pc |
| Units | Metric |
| Range (mm) | 0-25 |
| Resolution (mm) | 0.001 |
| Accuracy (µm) | ±2 |
| Spindle Type | Rotating |
| Spindle Face | Flat |
| STEM | w/clamp nut |
| Stem Diameter (mm) | 10 |
| Battery | SR44 (1 pc.) 938882 |
| Battery Life | Approx. 2.4 years under normal use |
| Display | LCD |
| Optional Accessories | 05CZA662, 05CZA663 |
| Technology | Digimatic |
| SPC Output | Yes |
| Measuring Force (N) | 5-10 |
| Measuring Faces | Carbide tipped |
| Berat (Kg) | 1.0 |
| Tanggal Produk Terdaftar | 13 December 2021 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Mitutoyo Digimatic digital micrometer head is manufactured with the same precision and durability as our trusted micrometers in our own Japanese factory. The frame and spindles on Mitutoyo’s micrometer heads are constructed of special hardened steel that minimizes flex and fluctuations due to temperatures for better, repeatable accuracy. The ratchet thimble provides a constant measuring force on the spindle to ensure accurate, repeatable measurements.
Feature
Available in Metric and Metric/Inch modelsModels available with a non-rotating spindle to eliminate radial torsion on the workpiece and deformation on the spindle for more accurate, repeatable results
Spindle diameter is 6.35mm /.25”
Mic head total length (at stroke end) is 181.5mm / 7.15”
Ratchet mechanism provides an audible click to ensure measurement is performed constant force
SPC output function allows for quick and easy data management in real time
Functions include 2 Presets, Function Lock, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
Twice as long battery life than previous models improves throughput and efficiency
Auto power ON/OFF function saves battery life allows easier use
IP65 protection permits use in environments exposed to cutting oil, dust, etc.*
Supplied in a plastic, fitted case
