Built-in basic switch for Z type. It is highly durable and has a large cutoff capacity.
When the cover is removed, the built-in switch terminals are on the front, making connection easy.

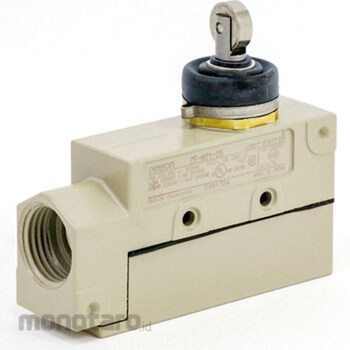

OMRON Regular-Use Enclosed Switch (Side Mounting Type) ZE/XE ZE-N21-2S 1pc
Rp749.900
Persediaan
Spesifikasi Produk
| Model Number | ZE-N21-2S |
|---|---|
| Unit | 1pc |
| Protection Class | IP65 |
| Built-in Switch | Single pole double throw (AC) |
| Applicable Standard | UL / CSA / CCC standard |
| Type Of Actuator | Seal / cross / roller / plunger type |
| Rated Voltage (V) | AC125, 250, 480, DC125, 250 |
| Withstand Voltage | Between terminals of the same pole: AC1000V 50 / 60Hz 1min ・ Between charging metal part and ground, between each terminal and non-charging metal part: AC2000V 50 / 60H 1min |
| Rated Frequency (Hz) | 50/60 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Operating Ambient Temperature (°C) | -10-80 (no icing) |
| Contact Resistance (miliΩ) | 15 or less (initial value) |
| Type of Terminal Fitting | Side mounting |
| Ambient Relative Humidity (RH) | 35 to 95 |
| Vibration Resistance (Malfunction) | 10 to 55 Hz, 1.5 mm double amplitude (at the limit position) |
| Mechanical Durability (times) | 10 million or more |
| Allowable Operating Speed (mm-m/s) | 0.01 to 0.5 |
| Electrical Durability | 500,000 operations or more (250 VAC, 15 A resistive load) |
| Inrush Current (A) | (Always maximum) Closed circuit / 30, Open circuit / 15 |
| Terminal Temperature Rising | 50deg or less |
| Conduit Size | 1 / 2-14NPSM / No ground terminal |
| M Code | 66541265 |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 23 November 2021 |
| Terakhir Diperbaharui | 02 October 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
PERHATIAN: Produk ini dirancang untuk tegangan 100/110/120V (Produk Impor). Penggunaan dengan tegangan yang berbeda dapat mengakibatkan kerusakan atau bahaya, karena tegangan listrik yang umum dipakai di Indonesia adalah 220V.Feature
Built-in base switch for general use. It has high durability and has a large number of cases.When the cover is removed, the connection of the built-in switch is in front, so it is easy to connect.
