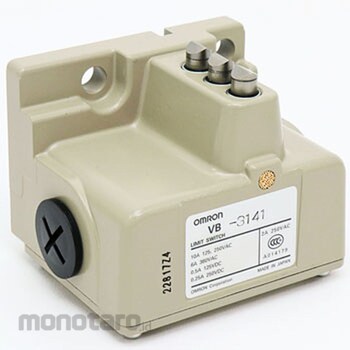

OMRON Multiple Limit Switch VB VB-3141 1pc
Rp4.299.900
Persediaan
Spesifikasi Produk
| Model Number | VB-3141 |
|---|---|
| Unit | 1pc |
| Shape | (Box) No collar, 2 locations on the side of the conduit mouth |
| Type Of Actuator | Bevel type |
| Protection Class | IP67 |
| Contact | 10A (general) |
| Rated Insulation Voltage (V) | (Ui)300(EN60947-5-1) |
| Number of Port | 3 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Operating Ambient Temperature (°C) | -10 to +80 (no icing) |
| Contact Resistance (miliΩ) | 15 or less (initial value) |
| Ambient Relative Humidity (RH) | 35 to 95 |
| Vibration Resistance (Malfunction) | 10~55Hz double amplitude 1.5mm |
| Mechanical Durability (times) | 5 million or more |
| Electrical Durability (times) | 300,000 or more (250 VAC, 10 A resistance load) |
| Short Circuit Protection Device | 10A fuse gG or gl (IEC269) |
| Reverse Voltage at ON/OFF (V) | 1000 max.(EN60947-5-1) |
| Rated Sealed Thermal Current | 5A, 0.5A(EN60947-5-1) |
| Pollution Degree (Environment to Use) | 3(EN60947-5-1) |
| Earth Terminal | None |
| Shock Resistance Malfunction (m/s²) | 200 or more |
| M Code | 46484505 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 23 November 2021 |
| Terakhir Diperbaharui | 02 October 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
ada
Description
New appearance of VB. Integrated head box improves head strength and sealability. Significant increase in mechanical durability (5 million times)
Can be used for sequence control of various machine tools, transfer machines, etc.
Since an oil filter is provided, even if oil or water enters the plunger, it can be removed to the outside.
CCC standard acquired.
Can be used for sequence control of various machine tools, transfer machines, etc.
Since an oil filter is provided, even if oil or water enters the plunger, it can be removed to the outside.
CCC standard acquired.
Feature
The form VB has newly appeared. Headboax integration improves head strength and sealability. Mechanical durability significantly (5 million times) Available for sequence controls such as various machine tools and transfer machines.
Since oil filter is provided, oil and water can be eliminated to the outside even if oil and water can be infiltrated by the plunger.
Acquisition of CCC standard.
Withstand Voltage
Between terminals of the same polarity: 1000 VAC 50/60 Hz 1 min Between live metal parts and ground, between each terminal and non-live metal parts: 1500 VAC 50/60 Hz 1 min/Umip 4 kV (EN60947-5-1) Between terminals of different polarity: Umip 4 kV (EN60947 -5-1)
