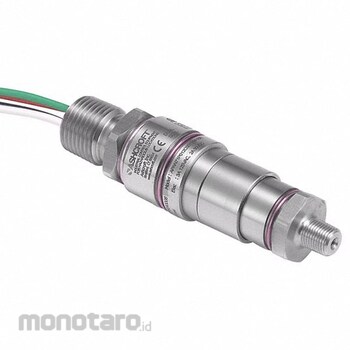

ASHCROFT Explosion Proof Pressure Switch APAN71H012CB055000#-NSR 500 to 5000 psi 1unit

Name: ASHCROFT Explosion Proof Pressure Switch APAN71H012CB055000#-NSR 500 to 5000 psi 1unit
Brand: ASHCROFT
SKU: S029470631
Price: 13999900 IDR
Availability: InStock
Rating: 100 (1 reviews)

#Nomor SKU S029470631

Wishlist

Rating:

100% of 100

(1)

1 Ulasan

Spesifikasi Produk

Model Number	APAN71H012CB055000#-NSR
Unit	1unit
Produk	Explosion Proof Pressure Switch
Range (psi)	500 to 5000
Process Connection	7/16 in SAE
Housing Material	316 Stainless Steel
Wetted Materials	316 Stainless Steel Piston and Buna-N O-Ring
Compatible With	Air and Liquids
Electrical Connection	1/2 in MNPT Conduit Connector with 3-18 AWG 12 in Wire Leads
Contact Form	SPDT
Circuit Type	Not Applicable
AC Contact Rating	5A at 125/250V AC
DC Contact Rating	3A @ 28V DC Inductive, 5A @ 28V DC Resistive
NEMA Rating	7, 9
IP Rating	67
Burst Pressure (psi)	15,000
Operating Temperature Range (°F)	-40 to 210
Off Set Point	Field Adjustable
On Set Point	Field Adjustable
Power Required	10A at 125/250V AC, 6A at 30V DC
Safety Rating	ATEX, FM, IECEx
Berat (Kg)	0.3
Tanggal Produk Terdaftar	22 November 2021
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

This miniature pressure switch features stainless steel construction for uncompromising protection over a wide temperature range for demanding applications. It is designed for use in rugged conditions including offshore oil rigs, chemical and petrochemical plants, pulp and paper mills, autoclaves and sterilizers, and hydraulic and pneumatic braking systems. It is fully encased to prevent moisture from corroding switch contacts.
