Mitsubishi Electric Earth Leakage Breaker Nv-Kc Series (Contract Size) NV50-KC 2P 5A 100-200V 30MA W 1unit

Name: Mitsubishi Electric Earth Leakage Breaker Nv-Kc Series (Contract Size) NV50-KC 2P 5A 100-200V 30MA W 1unit
Brand: Mitsubishi Electric
SKU: S029406548
Price: 1199900 IDR
Availability: InStock

#Nomor SKU S029406548

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	NV50-KC 2P 5A 100-200V 30MA W
Unit	1unit

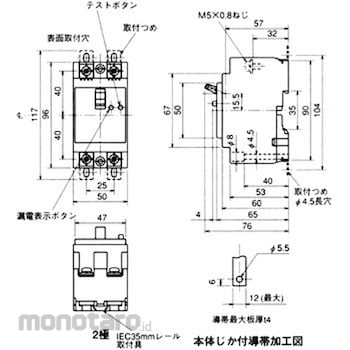

External Dimensions A (mm)	50
Type	General goods
External dimensions c (mm)	60
Operating Time (s)	0.1
Standard	Electrical equipment type approval JIS standard display approval number acquisition
Rated Voltage (V AC)	For 100-200 vehicles
Rated Breaking Capacity (kA)	AC200V:5/AC100V:5(JIS C8371)
Overcurrent trip method	Full electromagnetic
Leakage display method	Mechanical button
Rated Sensitivity Current (mA)	30
Mass (kg)	0.3
Standard Ambient Temperature (°C)	40
Frame (AF)	50
External Dimensions B (mm)	96
Rated Current (A)	5
Number of Poles	2P
External dimensions ca (mm)	76
Phase wire system	3phi 3W, 1phi 3W, 1phi 2W *When using a 3-pole earth leakage breaker for 1phi 2W, connect it to the left and right poles without using the center pole. If used for 1phi 3W, connect the center line to the center pole.
Connection Method	Surface type: For crimp terminals
Switching life (times)	Mechanical: 10000 Electrical (AC200V): 6000
M Code	06881095
Berat (Kg)	1.7
Tanggal Produk Terdaftar	05 November 2021
Terakhir Diperbaharui	20 October 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Peringatan

PERHATIAN: Produk ini dirancang untuk tegangan 100/110/120V (Produk Impor). Penggunaan dengan tegangan yang berbeda dapat mengakibatkan kerusakan atau bahaya, karena tegangan listrik yang umum dipakai di Indonesia adalah 220V.

Feature

For a wide range of uses.
Compact integrated type.
