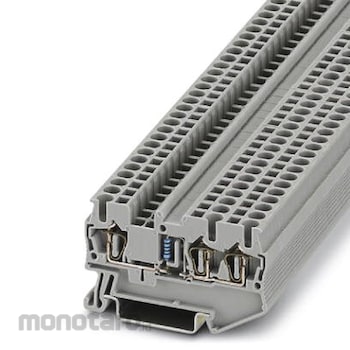

Phoenix Contact Terminal Block (Terminal Panel Listrik) ST 2,5-TWIN-R1K 0,6W 1pack(50pcs)

Name: Phoenix Contact Terminal Block (Terminal Panel Listrik) ST 2,5-TWIN-R1K 0,6W 1pack(50pcs)
Brand: Phoenix Contact
SKU: S028876311
Price: 5399900 IDR
Availability: InStock

#Nomor SKU S028876311

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	ST 2,5-TWIN-R1K 0,6W
Unit	1pack(50pcs)
Country of Origin	PL (Poland)
Color	Gray
Insulating Material	PA
Rated Surge Voltage (kV)	4
Degree of Pollution	3
Overvoltage Category	III
Insulating Material Group	I
Maximum Load Current (A)	0.5 (The maximum current is determined by the built-in resistance.)
Nominal Current IN (A)	0.5
Nominal Voltage Un (V)	800
Open Side Panel	Yes
Width (mm)	5.2
End Cover Width (mm)	2.2
Length (mm)	60.5
Mounting Type	NS 35/7,5
Potentials	1
Number of Rows	1
Number of Connections	3
Nominal Cross Section Area (mm²)	2.5
Part Number	3038354
Berat (Kg)	796.0
Tanggal Produk Terdaftar	29 September 2021
Terakhir Diperbaharui	02 February 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Warning

Delivery time on request.
Made to Order (non-returnable).

Feature

Component terminal block, nom. voltage: 800 V, nominal current: 0.5 A, connection method: Spring-cage connection, number of connections: 3, cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, width: 5.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
