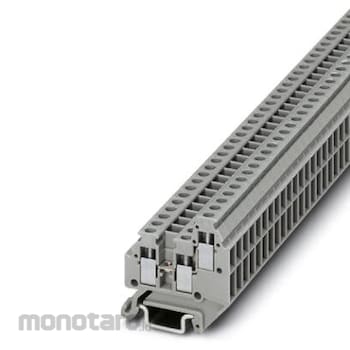

Phoenix Contact Micro Terminal MT 1,5-TWIN 1pack(50pcs)
Rp2.899.900
Persediaan
Spesifikasi Produk
| Model Number | MT 1,5-TWIN |
|---|---|
| Unit | 1pack(50pcs) |
| Country of Origin | TR (Turkey) |
| Color | Gray |
| Insulating Material | PA |
| Rated Surge Voltage (kV) | 4 |
| Degree of Pollution | 3 |
| Overvoltage Category | III |
| Insulating Material Group | I |
| Maximum Load Current (A) | 17.5 (in case of 1.5 mm² conductor cross section, the maximum load current must not be exceeded by the total current ofll connected conductors.) |
| Nominal Current IN (A) | 17.5 |
| Nominal Voltage Un (V) | 400 |
| Open Side Panel | Yes |
| Connection In Acc. With Standard | IEC 60947-7-1 |
| Back of the Hand Protection | Guaranteed |
| Finger Protection | Guaranteed |
| Bending Test Rotation Speed (rpm) | 10 |
| Bending Test Turns | 135 |
| Bending Test Conductor Cross Section per Weight (mm²/kg) | 0.14/0.2 |
| Surge Voltage Test Setpoint (kV) | 4.8 |
| Number of Rows | 2 |
| Part Number | 3001682 |
| Berat (Kg) | 345.4 |
| Tanggal Produk Terdaftar | 29 September 2021 |
| Terakhir Diperbaharui | 27 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Micro terminal, connection method: Screw connection, cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 16, width: 4.2 mm, color: gray, mounting type: NS 15Ketentuan dan Kondisi Barang
