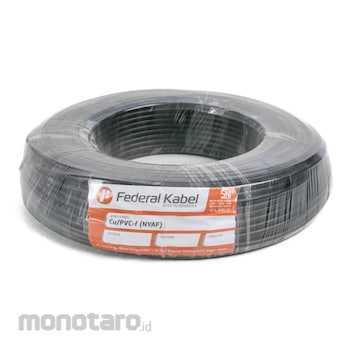

Federal Kabel Flexible Electrical Cable NYAF 300/500V 1x0.75mm² (Kabel) Black 1roll(100m)

Name: Federal Kabel Flexible Electrical Cable NYAF 300/500V 1x0.75mm² (Kabel) Black 1roll(100m)
Brand: Federal Kabel
SKU: S028578864
Price: 259900 IDR
Availability: OutOfStock
Rating: 100 (1 reviews)

#Nomor SKU S028578864

Wishlist

Rating:

100% of 100

(1)

1 Ulasan

Spesifikasi Produk

Unit	1roll(100m)
Core x Size (mm²)	1x0.75
Color	Black
Number of Cores	1
Nominal Cross Section Area (mm²)	0.75
Current Carrying Capacity (A)	12 (at 30°C)
Maximum Operating Temperature (°C)	70
Conductor Diameter (Nxmm)	24x0.2
Thickness (mm)	0.66
Overall Diameter (mm)	2.45
DC Resistance for Conductor (ohm/km)	Max 24.70 (at 20°C)
DC Resistance for Insulation (MΩ.km)	Min 58 (at 20°C)
Short Circuit Current (kA)	0.09 (per 1sec)
Standard	IEC 60227-6
Conductor Material	Annealed Bunched Copper Wire
Insulation Material	PVC
Length (m)	100
Berat (Kg)	1.2
Tanggal Produk Terdaftar	28 September 2021
Terakhir Diperbaharui	11 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Single core insulated conductor, without sheath, for general purposes. Suitable for fixed protected installation, or on, lighting or control gear for rated voltages up to 300/500 V. Installation in surface mounted or embedded conduits, or similar closed systems.
