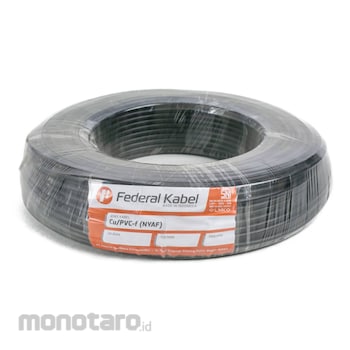

Federal Kabel Flexible Electrical Cable NYAF 300/500V 1x0.75mm² (Kabel)
#Grup produk P105738363
Kondisi Barang:
Bersertifikat SNI
Spesifikasi
| Number of Cores | 1 |
|---|---|
| Current Carrying Capacity (A) | 12 (at 30°C) |
| Conductor Material | Annealed Bunched Copper Wire |
| Insulation Material | PVC |
| Conductor Diameter (Nxmm) | 24x0.2 |
| Core x Size (mm²) | 1x0.75 |
| DC Resistance for Conductor (ohm/km) | Max 24.70 (at 20°C) |
| DC Resistance for Insulation (MΩ.km) | Min 58 (at 20°C) |
| Maximum Operating Temperature (°C) | 70 |
| Nominal Cross Section Area (mm²) | 0.75 |
| Overall Diameter (mm) | 2.45 |
| Short Circuit Current (kA) | 0.09 (per 1sec) |
| Standard | IEC 60227-6 |
| Thickness (mm) | 0.66 |
