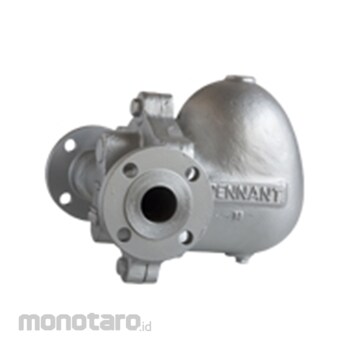

Pennant Ball Float Steam Traps PT66 SW 1.5inch 1pc

High capacity float and thermostatic (internal air vent) steam traps are designed for draining condensate from all types of low and medium pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers and jacketed vessels. Horizontal installation.

AVAILABLE TYPES:
PT 66 - with thermostatic air vent
PT 66S - SLR (with steam lock release)
PT 66C - with thermostatic air vent and SLR

USE: Saturated and superheated steam

INSTALLATION:
Horizontal installation with flow from left to right. The trap should be installed horizontally below the drain point of the equipment in a position such that the float arm is in a horizontal plane and the float rises and falls vertically, with the flow direction as indicated on the cover. The arrow on the nameplate should be pointing vertically upwards.
