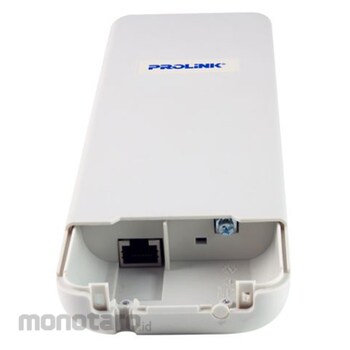

The PROLiNK PHA1010 2.4GHz Super WiFi 300Mbps AP/CPE/Bridge with Smart Antenna Technology is designed as an essential component in the PROLiNK Super WiFi system to extend outdoor WiFi coverage into indoor areas for broadband connectivity.
Content:
1 x PHA1010 Super WiFi CPE/ AP With Built-in 2.4GHz Patch Antennas
1 x DC Injector and AC Adaptor
1 x CD (Quick Installation Guide)
PROLiNK Super Wifi 2.4GHz PHA1010 AP/CPE/Bridge with Smart Antenna Technology 300Mbps 1unit
Rp2.999.900
Persediaan
Spesifikasi Produk
| Model Number | PHA1010 |
|---|---|
| Unit | 1unit |
| Operating Mode | AP/CPE/Bridge |
| Standard | IEEE 802.11b/g/n |
| Operating Frequency (GHz) | 2.412-2.472 |
| Max Transmit Power (dBm) | 23 |
| Dimensions (mm) | 220x80x24 |
| Network Interface | 10/100 Mbps Ethernet Port |
| Mounting | Desktop, Pole, Wall or Window-mounted |
| PoE Power (VDC) | 18 |
| Maximum Power Consumption (W) | 8 |
| Transfer Speed (Mbps) | 300 |
| Berat (Kg) | 8.0 |
| Tanggal Produk Terdaftar | 07 September 2021 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Receiver Sensitivity (Typical):802.11b (11 Mbps -91 dBm,1 Mbps -96 dBm)
802.11g (54 Mbps -81 dBm, 6 Mbps -95 dBm)
802.11n (HT20 -95 dBm)
- Transmit and Receive Diversity
- Automatic Channel Selection (with Scheduling)
- Site Survey Channel Scan
Antenna:
Built-in 2.4 GHz Antenna 10 dBi Dual Slant ±45° Patch
3-dB Horizontal Beamwidth 70°
3-dB Vertical Beamwidth 30°
Front-to-back Ratio -20 dB (Max.)
Networking:
8 Multiple SSID/ Virtual AP
Bandwidth Control/ VAP/ Client
DHCP Client/ Server
Dynamic NAT
Port Forward
Preferred AP Association
Auto ACK Timeout Calculation by Distance Input
Web Based Antenna Alignment Tool
2 User Access Levels for Web Login (3 Levels*)
WMM
