FURUNO Radar NAV1-1623 1pc

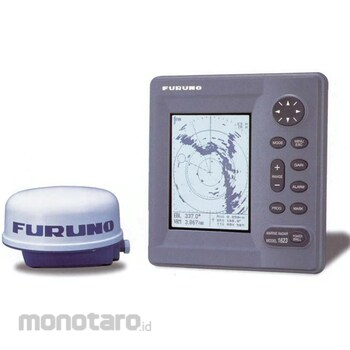

Name: FURUNO Radar NAV1-1623 1pc
Brand: FURUNO
SKU: S028477402
Price: 32999900 IDR
Availability: InStock

#Nomor SKU S028477402

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	NAV1-1623
Unit	1pc
Peak Output Power (kW)	2.2
Type Radome (mm)	ø380 (15.0inch)
Frequency Range (MHz)	9410±30 (X-band)
Beam Width (˚)	(Horizontal) 6.2 Beam Width (Vertical) 25
Range Scales (NM)	0.125-16
Antenna Rotation Speed (rpm)	24/31/41 (auto-select according to pulselength)
Display Unit (inch)	6 monochrome LCD
Temperature (°C)	Display unit: -15 to +55 Antenna unit: -25 to +70
Waterproofing	Display unit: IPX5 Antenna unit: IPX6
Power Supply (V DC)	12-24
Consumption Current (A)	3.2-1.4
Equipment List Standard	Display Unit 1 Unit Radome Antenna Unit Rsb-0093 1 Unit Standard Installation Materials 1 Set Standard Spare Parts 1 Set
Garansi Unit	1 bulan
Berat (Kg)	0.9
Tanggal Produk Terdaftar	03 September 2021
Terakhir Diperbaharui	16 September 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

High Contrast 6inch Silver Bright LCD
13 range scales from 0.125 to 16 nm
Optional GPS/DGPS/WAAS navigator shows waypoint position with "lollipop mark"
Low power consumption 8 Watts in Watchman mode
Reverse video feature for effective use at night
Improved short range target detection by using narrower pulselengths and dual IF bandwidths
Zoom window for close observation of a specific area
