Installation is done by simply driving in the core rod, so you can see at a glance when the installation is complete.
Since the main body and threaded part have the same diameter, drilling into concrete can be done with a small diameter.
Can be installed directly on top of the attachment.
Since it is a nut tightening type, it can be removed.
Purpose:
For construction work, civil engineering work, electrical work, mechanical equipment work, etc.

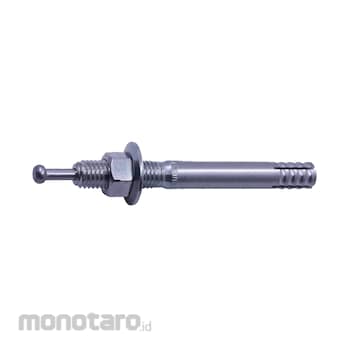

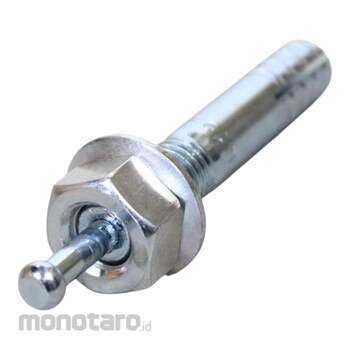

SANKO Hit Anchor Type C (Dynabolt Angkur Ketok) M12x70mm 1pc
Rp24.000
Persediaan
Spesifikasi Produk
| Unit | 1pc |
|---|---|
| Maximum Attachment Thickness (mm) | 6 |
| Embedding Depth (mm) | 50 |
| Maximum Tensile Load (kN) | 17.1 |
| Pilot Hole Diameter (mm) | 12.7 |
| Thread Length (mm) | 25 |
| Length (mm) | 70 |
| Diameter (mm) | 12 |
| Material | Alumunium |
| Surface Treatment | Chromate treatment |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 02 July 2021 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Pictures are examples (Please check the specifications of each product number for details)
